DME25 Series DC Motor with Gearbox 43G - High Torque, Low Speed
DME25 Series DC Motor with Gearbox 43G - High Torque, Low Speed
SKU:PER-05b03c
Powerful DME25 Series Motor with Gearbox 43G - Ideal for precise, high-torque applications
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
DME25 Series DC Motor with Gearbox 43G - High Torque, Low Speed
$49.99
Quantity: 1
Claim Your Seller Account
DME25 Series DC Motor with Gearbox 43G - High Torque, Low Speed
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

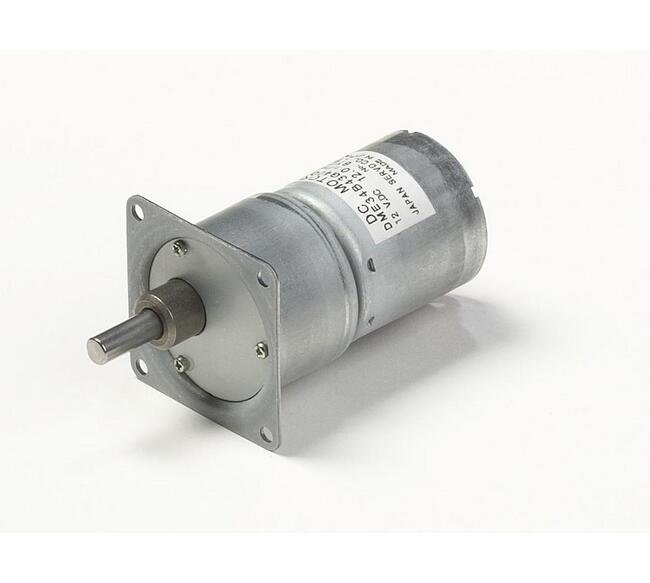

The DME25 Series Motor with Gearbox 43G is a robust and reliable solution designed for intermittent drive applications. Featuring a 43 x 43 mm motor frame size, a gear ratio of 100, and a rated torque of 45.83 oz·in, this DC motor operates at a rated speed of 58 r/min with a rated voltage of DC 12V. With a compact design weighing only 160g, it offers a power output of 3.0W. This motor is ideal for tasks requiring precise control, durability, and efficiency, making it a perfect fit for industrial, institutional, and government procurement needs.
Product Specifications
Additional Information 0
DME34B43G | Gear-Head Design | Motor Selection Guide | Motor/Gearhead Selection Guide | Motor's Construction and Characteristics
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
470 mA | 0.47 A
Specifications Gear Ratio
100
Specifications L1
55.8 mm | 2.197 in
Specifications L2
23.3 mm | 0.917 in
Specifications Model Code
BA
Specifications Motor Frame Size
43 x 43 mm | 1.693 x 1.693 in
Specifications Product Type
DC Motor with Gearbox 43G
Specifications Rated Output
3.0 W
Specifications Rated Speed
58 r/min
Specifications Rated Torque
45.83 oz·in | 0.32 N·m
Specifications Rated Voltage
DC 12 V
Specifications Series
DME25
Specifications Weight
160 g | 0.35 lb
