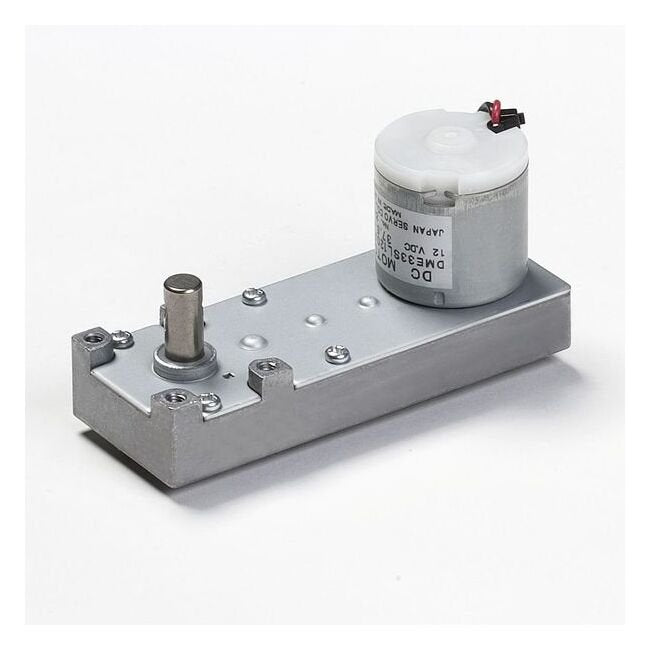

DME25 Series DC Motor with L Type Gearbox
DME25 Series DC Motor with L Type Gearbox
SKU:PER-6329e1
Powerful DME25 Series DC Motor with L Type Gearbox for precise and reliable intermittent drive applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DME25 Series DC Motor with L Type Gearbox
$89.99
Quantity: 1
Claim Your Seller Account
DME25 Series DC Motor with L Type Gearbox
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME25 Series DC Motor with L Type Gearbox is a powerful solution designed for intermittent drive applications. With a gear ratio of 30 and rated torque of 12.22 oz·in, this motor offers precise control and reliable performance. Operating at a rated voltage of 24V with a rated output of 3.0W, it ensures efficient power utilization. The motor frame size of 38 x 100 mm and a weight of 160g make it compact yet robust, suitable for various industrial and institutional settings. Additionally, its compliance with relevant industry standards ensures reliability and quality for government procurement needs.
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide | Motor/Gearhead Selection Guide | Motor's Construction and Characteristics
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
230 mA | 0.23 A
Specifications Gear Ratio
30
Specifications L1
53.3 mm | 2.098 in
Specifications L2
20.8 mm | 0.819 in
Specifications Model Code
BB
Specifications Motor Frame Size
38 x 100 mm | .866 x 3.937 in
Specifications Product Type
DC Motor with Gearbox L
Specifications Rated Output
3.0 W
Specifications Rated Speed
193 r/min
Specifications Rated Torque
12.22 oz·in | 0.09 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME25
Specifications Weight
160 g | 0.35 lb
