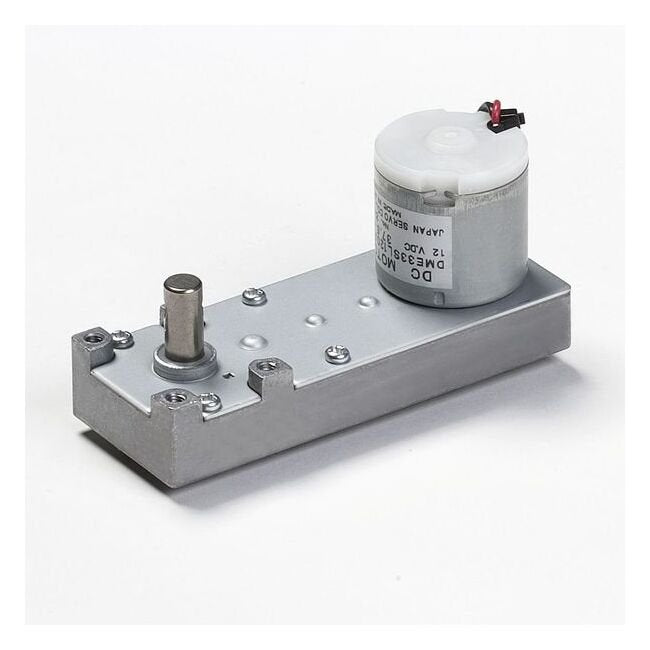

DME25 Series DC Motor with L Type Gearbox
DME25 Series DC Motor with L Type Gearbox
SKU:PER-4ab9b3
Power your applications efficiently with the DME25 Series DC Motor with L Type Gearbox. Compact, reliable, and ideal for intermittent drive.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DME25 Series DC Motor with L Type Gearbox
$89.99
Quantity: 1
Claim Your Seller Account
DME25 Series DC Motor with L Type Gearbox
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME25 Series DC Motor with L Type Gearbox offers reliable performance for intermittent drive applications. Featuring a gear ratio of 50, rated torque of 19.44 oz·in, and a compact motor frame size of 38 x 100 mm, this motor is designed for efficiency and durability. With a rated output of 3.0 W and a rated voltage of 24 V, it ensures consistent power delivery. The motor's lightweight design at 160g makes it versatile for various industrial needs, meeting the requirements of institutional and government procurement standards.
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide | Motor/Gearhead Selection Guide | Motor's Construction and Characteristics
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
230 mA | 0.23 A
Specifications Gear Ratio
50
Specifications L1
55.8 mm | 2.197 in
Specifications L2
23.3 mm | 0.917 in
Specifications Model Code
BB
Specifications Motor Frame Size
38 x 100 mm | .866 x 3.937 in
Specifications Product Type
DC Motor with Gearbox L
Specifications Rated Output
3.0 W
Specifications Rated Speed
116 r/min
Specifications Rated Torque
19.44 oz·in | 0.14 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME25
Specifications Weight
160 g | 0.35 lb
