DME25 Series DC Motor with L Type Gearbox
DME25 Series DC Motor with L Type Gearbox
SKU:PER-801cf8
Compact DME25 Series DC Motor with L Type Gearbox for reliable intermittent drive applications
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
DME25 Series DC Motor with L Type Gearbox
$59.99
Quantity: 1
Claim Your Seller Account
DME25 Series DC Motor with L Type Gearbox
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

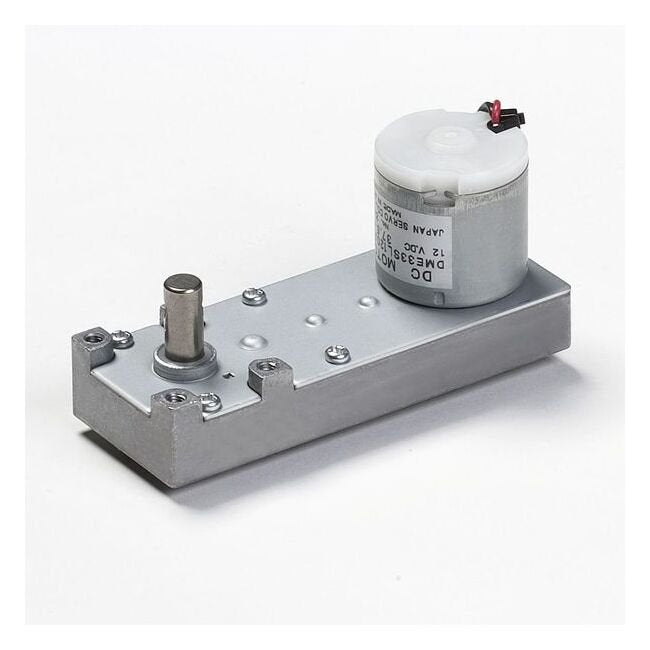

The DME25 Series DC Motor with L Type Gearbox is a high-performance gear head designed for intermittent drive applications. Featuring a compact motor frame size of 38 x 100 mm and a gear ratio of 120, this motor delivers a rated speed of 48.3 r/min and a rated torque of 48.61 oz·in. With a rated voltage of 12 V and a rated output of 3.0 W, this motor ensures reliable power and efficiency. Weighing only 160 g, the DME25 Series Motor is lightweight yet robust, making it ideal for various industrial and institutional uses. Custom designs are also available to meet specific requirements.
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide | Motor/Gearhead Selection Guide | Motor's Construction and Characteristics
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
470 mA | 0.47 A
Specifications Gear Ratio
120
Specifications L1
58.3 mm | 2.295 in
Specifications L2
25.8 mm | 1.016 in
Specifications Model Code
BA
Specifications Motor Frame Size
38 x 100 mm | .866 x 3.937 in
Specifications Product Type
DC Motor with Gearbox L
Specifications Rated Output
3.0 W
Specifications Rated Speed
48.3 r/min
Specifications Rated Torque
48.61 oz·in | 0.34 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME25
Specifications Weight
160 g | 0.35 lb
