DME25 Series DC Motor with L Type Gearbox - Intermittent Drive Gear Head
DME25 Series DC Motor with L Type Gearbox - Intermittent Drive Gear Head
SKU:PER-53b21f
High-performance DME25 DC Motor with L Type Gearbox for precision intermittent drive applications. Compact design with customizable options.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DME25 Series DC Motor with L Type Gearbox - Intermittent Drive Gear Head
$89.99
Quantity: 1
Claim Your Seller Account
DME25 Series DC Motor with L Type Gearbox - Intermittent Drive Gear Head
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

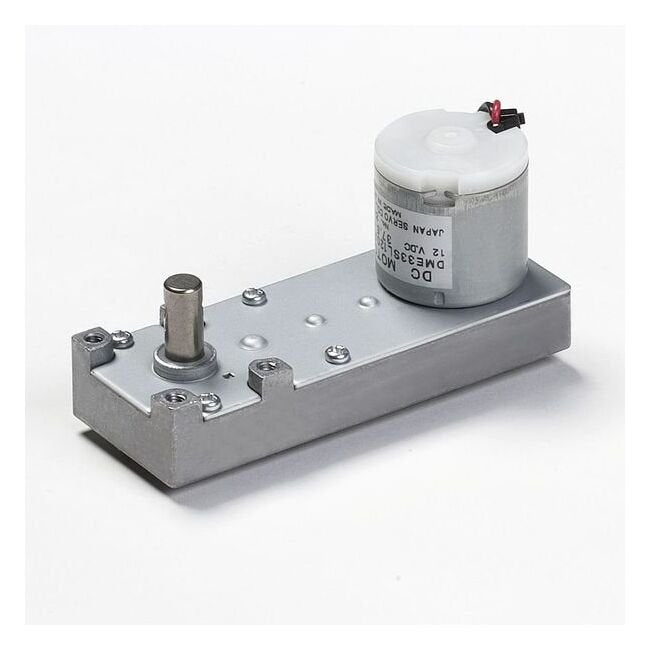

The DME25 Series DC Motor with L Type Gearbox offers exceptional performance and reliability for intermittent drive applications. With a compact motor frame size of 38 x 100 mm, gear ratio of 120, and rated torque of 48.61 oz·in, this motor is designed for precision and efficiency. Operating at 24V with a rated output of 3.0W, it ensures consistent speed and power delivery. The gear-head design enhances functionality, making it a versatile choice for various industrial and institutional uses. Customize options available to meet specific requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide | Motor/Gearhead Selection Guide | Motor's Construction and Characteristics
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
230 mA | 0.23 A
Specifications Gear Ratio
120
Specifications L1
58.3 mm | 2.295 in
Specifications L2
25.8 mm | 1.016 in
Specifications Model Code
BB
Specifications Motor Frame Size
38 x 100 mm | .866 x 3.937 in
Specifications Product Type
DC Motor with Gearbox L
Specifications Rated Output
3.0 W
Specifications Rated Speed
48.3 r/min
Specifications Rated Torque
48.61 oz·in | 0.34 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME25
Specifications Weight
160 g | 0.35 lb
