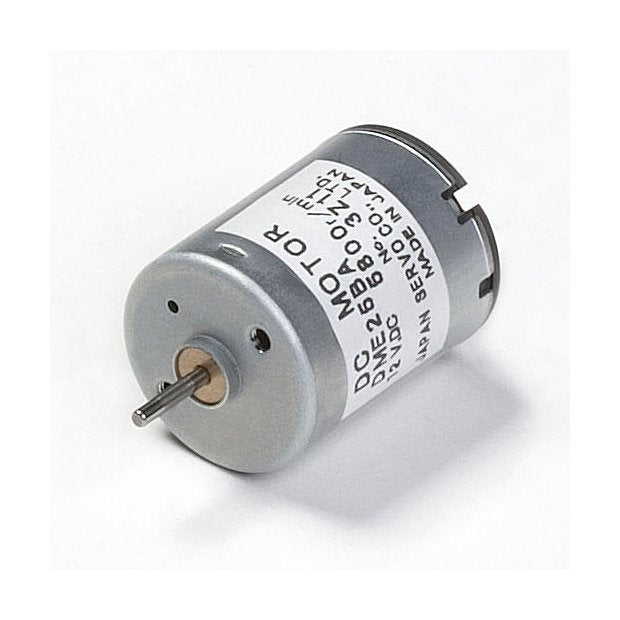

DME25 Series DC Motor with Pulse Generator
DME25 Series DC Motor with Pulse Generator
SKU:PER-6bd287
Compact yet powerful DC motor with pulse generator for reliable high-performance applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DME25 Series DC Motor with Pulse Generator
$89.99
Quantity: 1
Claim Your Seller Account
DME25 Series DC Motor with Pulse Generator
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME25 Series DC Motor with Pulse Generator is a compact, high-power motor designed for durability and efficiency. With a rated output of 3.0W and a rated torque of 4.9mN·m, this motor offers high performance in a small package. It features optimized brush design for long-life operation, high heat dissipation for increased output, and robust construction for high radial load capacity. The motor is equipped with a magnetic revolution sensor and noise filter for enhanced functionality. Choose from a variety of gear heads and reduction ratios to meet your specific needs.
Product Specifications
Additional Information 0
a1464.jpg | Gear-Head Design | Motor Selection Guide | Motor/Gearhead Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
230 mA | 0.23 A
Specifications Diameter
17 mm | .669 in
Specifications Model Code
BB
Specifications No Load Current
0.04 A
Specifications No Load Speed
8000 r/min
Specifications Product Type
DC Motor
Specifications Rated Output
3.0 W
Specifications Rated Speed
5800 r/min
Specifications Rated Torque
4.9 mN·m | 0.69 oz·in
Specifications Rated Voltage
DC 24 V
Specifications Series
DME25
Specifications Stall Torque
17.7 mN·m | 2.50 oz·in
Specifications Weight
55 g | 0.12 lb
Torque Curve 0
