DME25 Series Motor with Gearbox 36G - High Torque DC Motor
DME25 Series Motor with Gearbox 36G - High Torque DC Motor
SKU:PER-59a746
High torque DC motor with gear ratio 10, rated torque 5.55 oz·in, and compact 37mm frame size.
Regular price
$84.99
Regular price
Sale price
$84.99
Unit price
per
Initiate Order
DME25 Series Motor with Gearbox 36G - High Torque DC Motor
$84.99
Quantity: 1
Claim Your Seller Account
DME25 Series Motor with Gearbox 36G - High Torque DC Motor
$84.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

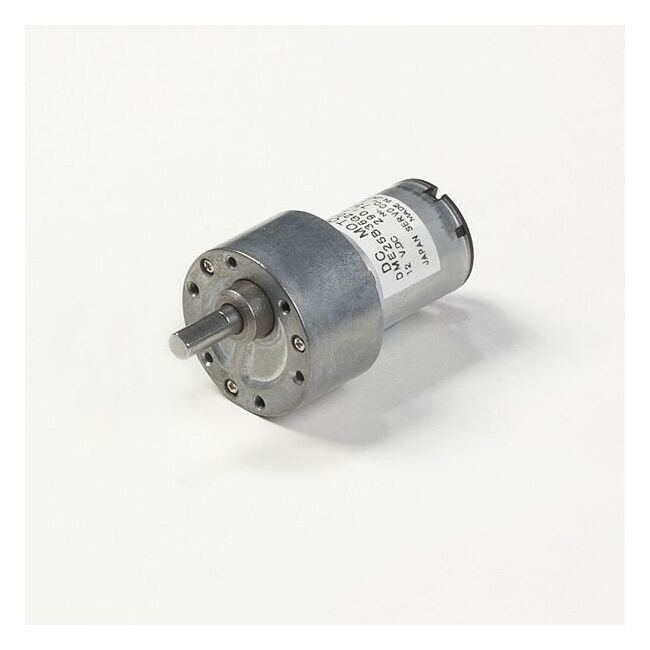

The DME25 Series Motor with Gearbox 36G is a robust DC motor perfect for applications requiring intermittent drive. Featuring a rated torque of 5.55 oz·in and a gear ratio of 10, this motor delivers reliable performance with a rated output of 3.0W at 12V. Built with a compact 37mm motor frame size and weighing only 160g, it offers a perfect balance between power and efficiency. The gear-head design ensures smooth operation and precise control, making it an ideal choice for both consumer and institutional buyers seeking durability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
DME25 Series Motors with Gearbox 36G (DME25B36G) | Gear-Head Design | Motor Selection Guide | Motor's Construction and Characteristics
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
470 mA | 0.47 A
Specifications Gear Ratio
10
Specifications L1
52.3 mm | 2.059 in
Specifications L2
19.8 mm | 0.78 in
Specifications Model Code
BA
Specifications Motor Frame Size
37 mm | 1.457 in
Specifications Product Type
DC Motor with Gearbox 36G
Specifications Rated Output
3.0 W
Specifications Rated Speed
580 r/min
Specifications Rated Torque
5.55 oz·in | 0.04 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME25
Specifications Weight
160 g | 0.35 lb
