DME25 Series Motor with Gearbox 43G - DC 12V 3.0W
DME25 Series Motor with Gearbox 43G - DC 12V 3.0W
SKU:PER-9b3279
Compact DME25 Series Motor with Gearbox 43G for precise intermittent drive applications. 12V, 3.0W rated output, and customizable designs.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
DME25 Series Motor with Gearbox 43G - DC 12V 3.0W
$59.99
Quantity: 1
Claim Your Seller Account
DME25 Series Motor with Gearbox 43G - DC 12V 3.0W
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

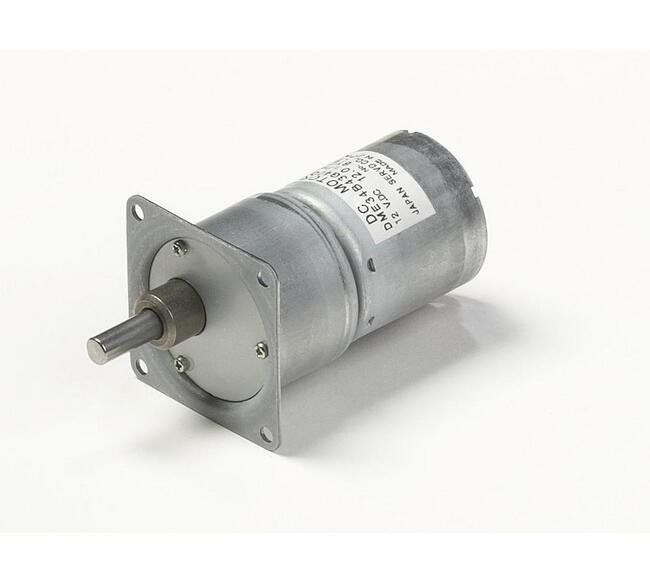

The DME25 Series Motor with Gearbox 43G offers precise intermittent drive capabilities ideal for various applications. Featuring a compact 43 x 43 mm motor frame size, a gear ratio of 10, and a rated torque of 5.55 oz·in, this DC motor operates at a rated speed of 580 r/min. With a rated output of 3.0W and compliance with industry-specific certifications, it ensures reliable performance in demanding environments. Customizable designs and motor selection guides further enhance its versatility, making it a top choice for institutional and government procurement needs.
Product Specifications
Additional Information 0
DME34B43G | Gear-Head Design | Motor Selection Guide | Motor/Gearhead Selection Guide | Motor's Construction and Characteristics
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
470 mA | 0.47 A
Specifications Gear Ratio
10
Specifications L1
50.8 mm | 2.000 in
Specifications L2
18.3 mm | 0.720 in
Specifications Model Code
BA
Specifications Motor Frame Size
43 x 43 mm | 1.693 x 1.693 in
Specifications Product Type
DC Motor with Gearbox 43G
Specifications Rated Output
3.0 W
Specifications Rated Speed
580 r/min
Specifications Rated Torque
5.55 oz·in | 0.04 N·m
Specifications Rated Voltage
DC 12 V
Specifications Series
DME25
Specifications Weight
160 g | 0.35 lb
