DME25 Series Motor with Gearbox 43G - DC 24V, 3.0W, 12.4 RPM
DME25 Series Motor with Gearbox 43G - DC 24V, 3.0W, 12.4 RPM
SKU:PER-59c595
High-performance DME25 Series Motor with Gearbox 43G - Ideal for intermittent drive applications
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
DME25 Series Motor with Gearbox 43G - DC 24V, 3.0W, 12.4 RPM
$99.99
Quantity: 1
Claim Your Seller Account
DME25 Series Motor with Gearbox 43G - DC 24V, 3.0W, 12.4 RPM
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

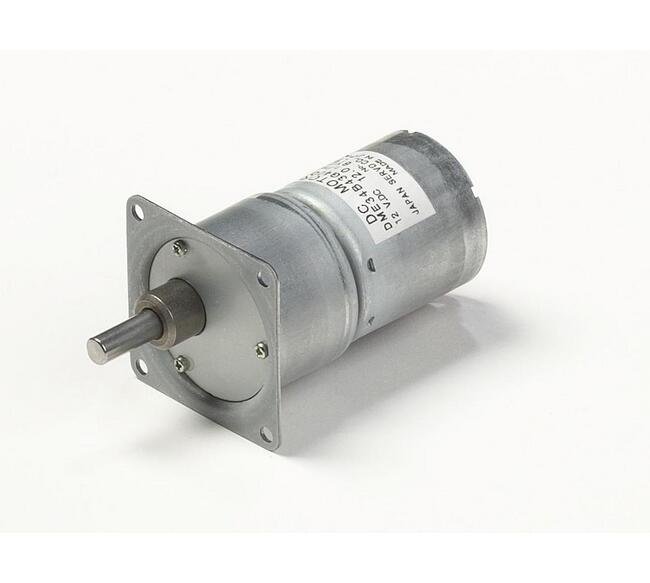

The DME25 Series Motor with Gearbox 43G offers superior performance for intermittent drive applications. With a compact motor frame size of 43 x 43 mm and a powerful gear ratio of 600, this DC motor delivers a rated torque of 55.55 oz·in, ensuring precise and efficient operation. Rated at 24V with a current rating of 230mA, this motor with gearbox provides reliable power output of 3.0W at a rated speed of 12.4 RPM. Designed for durability and smooth operation, the DME25 Series Motor is a versatile choice for various industrial and institutional applications.
Product Specifications
Additional Information 0
DME34B43G | Gear-Head Design | Motor Selection Guide | Motor/Gearhead Selection Guide | Motor's Construction and Characteristics
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
230 mA | 0.23 A
Specifications Gear Ratio
600
Specifications L1
60.8 mm | 2.394 in
Specifications L2
28.3 mm | 1.114 in
Specifications Model Code
BB
Specifications Motor Frame Size
43 x 43 mm | 1.693 x 1.693 in
Specifications Product Type
DC Motor with Gearbox 43G
Specifications Rated Output
3.0 W
Specifications Rated Speed
12.4 r/min
Specifications Rated Torque
55.55 oz·in | 0.39 N·m
Specifications Rated Voltage
DC 24 V
Specifications Series
DME25
Specifications Weight
160 g | 0.35 lb
