DME25 Series Motor with Gearbox 43G - DC 24V, 3.0W, 580 RPM
DME25 Series Motor with Gearbox 43G - DC 24V, 3.0W, 580 RPM
SKU:PER-3ea6d9
High-quality DME25 Series DC Motor with Gearbox 43G - Compact, Efficient, Reliable
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DME25 Series Motor with Gearbox 43G - DC 24V, 3.0W, 580 RPM
$89.99
Quantity: 1
Claim Your Seller Account
DME25 Series Motor with Gearbox 43G - DC 24V, 3.0W, 580 RPM
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

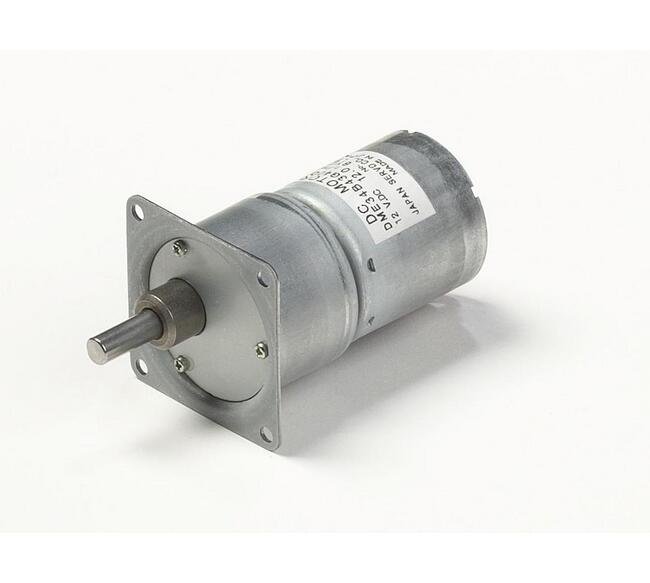

The DME25 Series Motor with Gearbox 43G is a high-quality DC motor designed for intermittent drive applications. With a compact motor frame size of 43 x 43 mm and a gear ratio of 10, this motor delivers precise performance. Operating at a rated speed of 580 r/min and providing a rated torque of 5.55 oz·in, it ensures reliable power transmission. Rated at DC 24V and 3.0W, this motor offers efficient operation while maintaining a current rating of 230 mA. Weighing only 160g, it is lightweight yet durable, making it ideal for various industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
DME34B43G | Gear-Head Design | Motor Selection Guide | Motor/Gearhead Selection Guide | Motor's Construction and Characteristics
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
230 mA | 0.23 A
Specifications Gear Ratio
10
Specifications L1
50.8 mm | 2.000 in
Specifications L2
18.3 mm | 0.720 in
Specifications Model Code
BB
Specifications Motor Frame Size
43 x 43 mm | 1.693 x 1.693 in
Specifications Product Type
DC Motor with Gearbox 43G
Specifications Rated Output
3.0 W
Specifications Rated Speed
580 r/min
Specifications Rated Torque
5.55 oz·in | 0.04 N·m
Specifications Rated Voltage
DC 24 V
Specifications Series
DME25
Specifications Weight
160 g | 0.35 lb
