DME25 Series Motor with Gearbox 43G - DC Motor for Intermittent Drive
DME25 Series Motor with Gearbox 43G - DC Motor for Intermittent Drive
SKU:PER-3016c4
High-performance DME25 Series Motor with Gearbox 43G for efficient intermittent drive applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
DME25 Series Motor with Gearbox 43G - DC Motor for Intermittent Drive
$59.99
Quantity: 1
Claim Your Seller Account
DME25 Series Motor with Gearbox 43G - DC Motor for Intermittent Drive
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

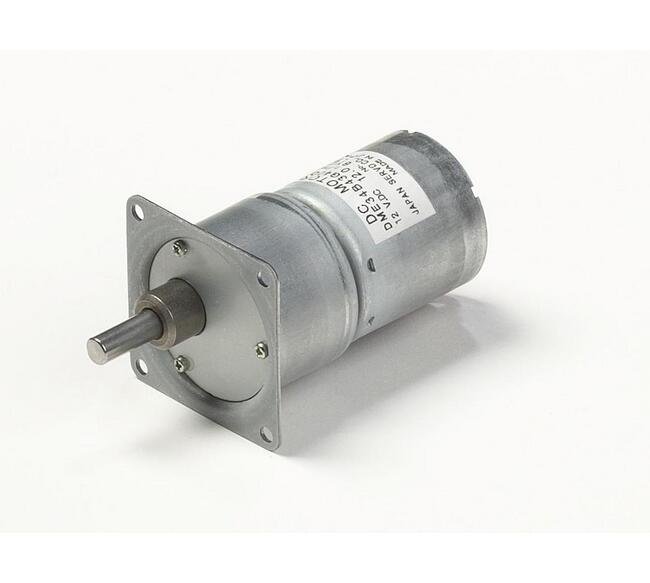

The DME25 Series Motor with Gearbox 43G is a high-performance DC motor designed for intermittent drive applications. Featuring a compact motor frame size of 43 x 43 mm, a gear ratio of 250, and a rated speed of 27.2 r/min, this motor delivers reliable power with a rated torque of 55.55 oz·in. Operating at a rated voltage of DC 12V with a rated output of 3.0W, this motor ensures efficient performance with a current rating of 470mA. With a lightweight design of 160g and a unique gear-head construction, the DME25 Series Motor is ideal for various industrial and institutional applications.
Product Specifications
Additional Information 0
DME34B43G | Gear-Head Design | Motor Selection Guide | Motor/Gearhead Selection Guide | Motor's Construction and Characteristics
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
470 mA | 0.47 A
Specifications Gear Ratio
250
Specifications L1
58.3 mm | 2.295 in
Specifications L2
25.8 mm | 1.016 in
Specifications Model Code
BA
Specifications Motor Frame Size
43 x 43 mm | 1.693 x 1.693 in
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Motor with Gearbox 43G
Specifications Rated Output
3.0 W
Specifications Rated Speed
27.2 r/min
Specifications Rated Torque
55.55 oz·in | 0.39 N·m
Specifications Rated Voltage
DC 12 V
Specifications Series
DME25
Specifications Weight
160 g | 0.35 lb
