DME25 Series Motor with Gearbox 43G - DC Motor for Intermittent Drive, DME25 Series 500:1 Gear Ratio
DME25 Series Motor with Gearbox 43G - DC Motor for Intermittent Drive, DME25 Series 500:1 Gear Ratio
SKU:PER-bac148
High-quality DME25 Series Motor with Gearbox 43G for precise intermittent drive applications. Compact, efficient, and reliable.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
DME25 Series Motor with Gearbox 43G - DC Motor for Intermittent Drive, DME25 Series 500:1 Gear Ratio
$49.99
Quantity: 1
Claim Your Seller Account
DME25 Series Motor with Gearbox 43G - DC Motor for Intermittent Drive, DME25 Series 500:1 Gear Ratio
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

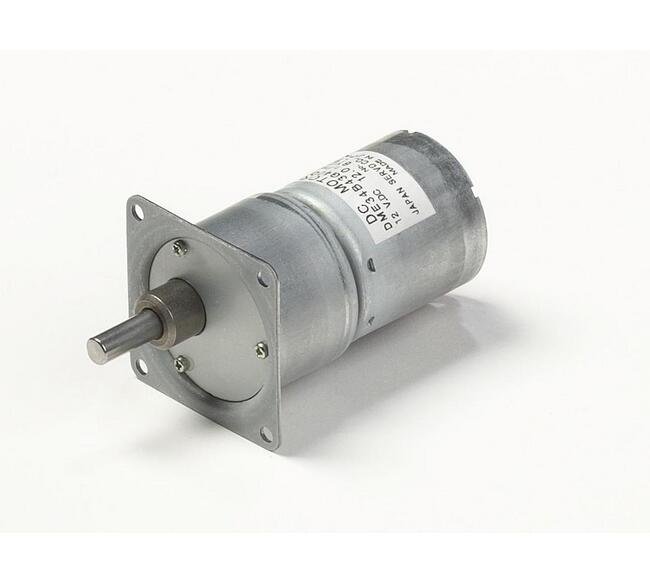

The DME25 Series Motor with Gearbox 43G is a high-quality DC motor designed for intermittent drive applications. With a compact size of 43 x 43 mm and a gear ratio of 500:1, this motor delivers a rated speed of 14.6 r/min and a rated torque of 55.55 oz·in, making it ideal for precision tasks. Operating at a rated voltage of DC 12 V and generating 3.0 W of output power, this motor is efficient and reliable. Weighing only 160 g, it is lightweight yet durable. The Gear-Head Design and Motor Selection Guide ensure compatibility and performance, while customizable designs offer flexibility to suit various needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
DME34B43G | Gear-Head Design | Motor Selection Guide | Motor/Gearhead Selection Guide | Motor's Construction and Characteristics
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
470 mA | 0.47 A
Specifications Gear Ratio
500
Specifications L1
60.8 mm | 2.394 in
Specifications L2
28.3 mm | 1.114 in
Specifications Model Code
BA
Specifications Motor Frame Size
43 x 43 mm | 1.693 x 1.693 in
Specifications Product Type
DC Motor with Gearbox 43G
Specifications Rated Output
3.0 W
Specifications Rated Speed
14.6 r/min
Specifications Rated Torque
55.55 oz·in | 0.39 N·m
Specifications Rated Voltage
DC 12 V
Specifications Series
DME25
Specifications Weight
160 g | 0.35 lb
