DME25 Series Motor with Gearbox 43G - DC Motor with 600:1 Gear Ratio
DME25 Series Motor with Gearbox 43G - DC Motor with 600:1 Gear Ratio
SKU:PER-c0ad21
High-quality DME25 Series Motor with Gearbox 43G - ideal for intermittent drive, compact design, 12.4 r/min, DC 12V, 55.55 oz·in torque
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DME25 Series Motor with Gearbox 43G - DC Motor with 600:1 Gear Ratio
$89.99
Quantity: 1
Claim Your Seller Account
DME25 Series Motor with Gearbox 43G - DC Motor with 600:1 Gear Ratio
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

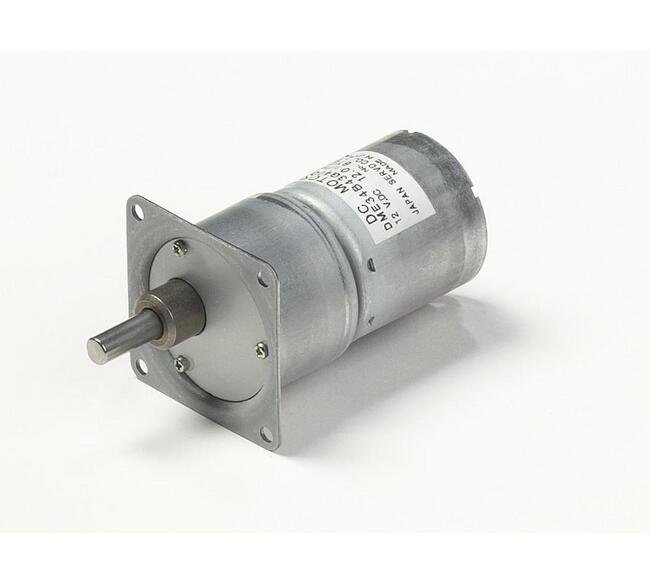

The DME25 Series Motor with Gearbox 43G is a high-quality DC motor specifically designed for intermittent drive applications. With a compact motor frame size of 43 x 43 mm, gear ratio of 600:1, and rated torque of 55.55 oz·in, this motor ensures reliable performance. Operating at a rated speed of 12.4 r/min and a rated output of 3.0 W, it offers excellent efficiency and power. The motor is rated at DC 12V with a current rating of 470 mA, making it suitable for a wide range of industrial and institutional applications. Its lightweight design and robust construction make it an ideal choice for projects requiring precision and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
DME34B43G | Gear-Head Design | Motor Selection Guide | Motor/Gearhead Selection Guide | Motor's Construction and Characteristics
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
470 mA | 0.47 A
Specifications Gear Ratio
600
Specifications L1
60.8 mm | 2.394 in
Specifications L2
28.3 mm | 1.114 in
Specifications Model Code
BA
Specifications Motor Frame Size
43 x 43 mm | 1.693 x 1.693 in
Specifications Product Type
DC Motor with Gearbox 43G
Specifications Rated Output
3.0 W
Specifications Rated Speed
12.4 r/min
Specifications Rated Torque
55.55 oz·in | 0.39 N·m
Specifications Rated Voltage
DC 12 V
Specifications Series
DME25
Specifications Weight
160 g | 0.35 lb
