DME25 Series Motor with Gearbox 43G - Premium DC Motor for Intermittent Drive
DME25 Series Motor with Gearbox 43G - Premium DC Motor for Intermittent Drive
SKU:PER-377fcf
Experience precision and power with the DME25 Series Motor with Gearbox 43G - perfect for intermittent drive applications.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
DME25 Series Motor with Gearbox 43G - Premium DC Motor for Intermittent Drive
$69.99
Quantity: 1
Claim Your Seller Account
DME25 Series Motor with Gearbox 43G - Premium DC Motor for Intermittent Drive
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

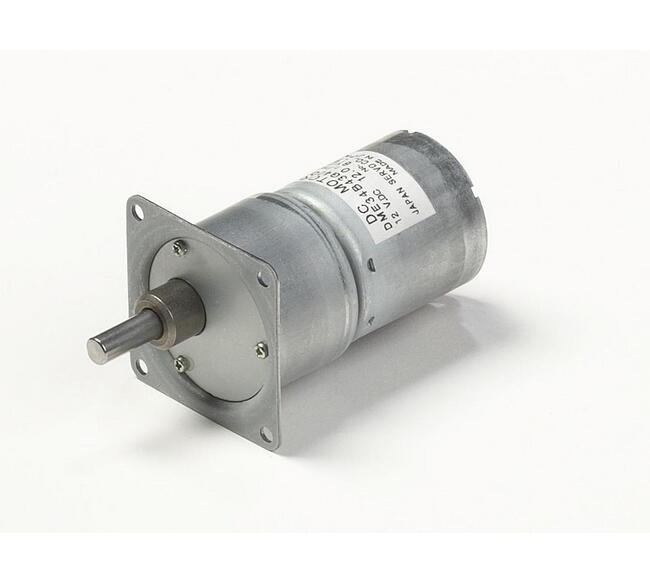

The DME25 Series Motor with Gearbox 43G is designed for precise intermittent drive applications, offering a superb combination of power and efficiency. Featuring a compact frame size of 43 x 43 mm, a gear ratio of 400, and a rated torque of 55.55 oz·in, this DC motor is a powerhouse. With a rated voltage of DC 24V and current rating of 230mA, it delivers consistent performance. Ideal for both consumer and institutional buyers, this motor is a versatile choice for various projects.
Product Specifications
Additional Information 0
DME34B43G | Gear-Head Design | Motor Selection Guide | Motor/Gearhead Selection Guide | Motor's Construction and Characteristics
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
230 mA | 0.23 A
Specifications Gear Ratio
400
Specifications L1
60.8 mm | 2.394 in
Specifications L2
28.3 mm | 1.114 in
Specifications Model Code
BB
Specifications Motor Frame Size
43 x 43 mm | 1.693 x 1.693 in
Specifications Product Type
DC Motor with Gearbox 43G
Specifications Rated Output
3.0 W
Specifications Rated Speed
17.9 r/min
Specifications Rated Torque
55.55 oz·in | 0.39 N·m
Specifications Rated Voltage
DC 24 V
Specifications Series
DME25
Specifications Weight
160 g | 0.35 lb
