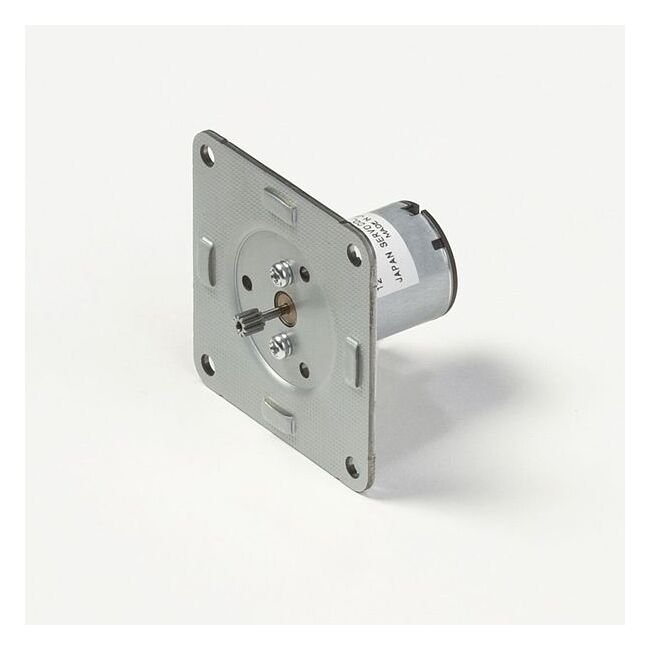

DME25 Series Motor with Gearbox 6DG - 3.0W 12V DC Motor
DME25 Series Motor with Gearbox 6DG - 3.0W 12V DC Motor
SKU:PER-25cc40
Compact, powerful DME25 Series Motor with Gearbox 6DG - ideal for efficient and reliable operations
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DME25 Series Motor with Gearbox 6DG - 3.0W 12V DC Motor
$129.99
Quantity: 1
Claim Your Seller Account
DME25 Series Motor with Gearbox 6DG - 3.0W 12V DC Motor
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME25 Series Motor with Gearbox 6DG combines compact size with high power output (3.0W) and a gear ratio of 50 for efficient performance. With long-life design and high heat dissipation, this motor ensures durability and reliability. It features a robust construction for high strength, low noise operation, and increased insulation. Offering a variety of gear heads and reduction ratios, along with options for magnetic revolution sensor and noise filter, this motor is versatile for diverse applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
DME25B6HPA.jpg | Gear-Head Design | Motor Selection Guide | With-Gearbox-6DG.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
470 mA | 0.47 A
Specifications Gear Ratio
50
Specifications Model Code
BA
Specifications Motor Frame Size
61 x 49.5 mm | 2.402 x 1.949 in
Specifications Note
6DG gearbox are available with either 4.5 mm diameter mounting holes or M4 x 6 mm tapped holes.Gearboxes with 4.5 mm diameter mounting holes are available from stock. When ordering, please write the motor model and gearbox model numbers separately, as in the following example;DME25B6HPB (Pinion shaft motor)6DG_ (Gearbox)Gearboxes with M4 x 6 mm tapped mounting holes are available on request. When ordering, please write the combine motor and gearbox model, as in the following example ; DME25B6H_BRotation of gearbox shaft is in reverse of rotation of motor
Specifications Product Type
DC Motor with Gearbox 6DG
Specifications Rated Output
3.0 W
Specifications Rated Speed
116 r/min
Specifications Rated Torque
25.0 oz·in | 0.180 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME25
