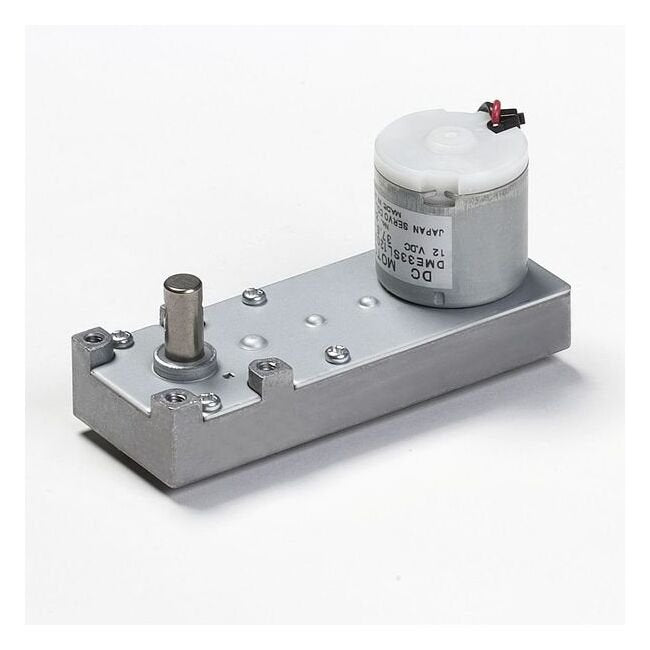

DME25 Series Motor with L Type Gearbox - Intermittent Drive Gear Heads
DME25 Series Motor with L Type Gearbox - Intermittent Drive Gear Heads
SKU:PER-7f5d78
High-quality DME25 Series Motor with L Type Gearbox for intermittent drive applications
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DME25 Series Motor with L Type Gearbox - Intermittent Drive Gear Heads
$89.99
Quantity: 1
Claim Your Seller Account
DME25 Series Motor with L Type Gearbox - Intermittent Drive Gear Heads
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME25 Series Motor with L Type Gearbox is a high-quality DC motor designed for intermittent drive applications. With a gear ratio of 150 and a rated torque of 61.10 oz·in, this motor provides reliable performance. Operating at 24V with a rated output of 3.0W, it ensures efficient power usage. The compact motor frame size of 38 x 100 mm makes it suitable for various installations. Ideal for pulse generator applications, this motor offers precision and durability, meeting the standards required for institutional and government procurement.
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide | Motor/Gearhead Selection Guide | Motor's Construction and Characteristics
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
230 mA | 0.23 A
Specifications Gear Ratio
150
Specifications L1
58.3 mm | 2.295 in
Specifications L2
25.8 mm | 1.016 in
Specifications Model Code
BB
Specifications Motor Frame Size
38 x 100 mm | .866 x 3.937 in
Specifications Product Type
DC Motor with Gearbox L
Specifications Rated Output
3.0 W
Specifications Rated Speed
38.6 r/min
Specifications Rated Torque
61.10 oz·in | 0.43 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME25
Specifications Weight
160 g | 0.35 lb
