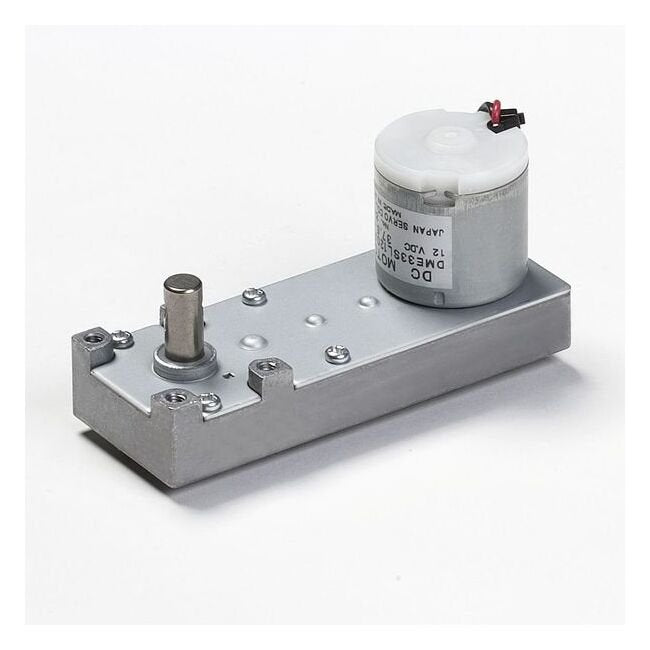

The DME25 Series Motor with L Type Gearbox is a versatile solution designed for intermittent drive applications. Featuring a compact motor frame size of 38 x 100 mm and a gear ratio of 150, this gear head offers precise control and reliable performance. With a rated speed of 38.6 r/min and a rated torque of 61.10 oz·in, it delivers the power needed for various industrial tasks. This DC motor with gearbox is rated at 12V with an output of 3.0W, making it efficient and suitable for diverse project requirements. Ideal for custom designs, this motor-gearhead combo is a must-have for applications that demand reliability and accuracy.
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide | Motor/Gearhead Selection Guide | Motor's Construction and Characteristics
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
470 mA | 0.47 A
Specifications Gear Ratio
150
Specifications L1
58.3 mm | 2.295 in
Specifications L2
25.8 mm | 1.016 in
Specifications Model Code
BA
Specifications Motor Frame Size
38 x 100 mm | .866 x 3.937 in
Specifications Product Type
DC Motor with Gearbox L
Specifications Rated Output
3.0 W
Specifications Rated Speed
38.6 r/min
Specifications Rated Torque
61.10 oz·in | 0.43 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME25
Specifications Weight
160 g | 0.35 lb
