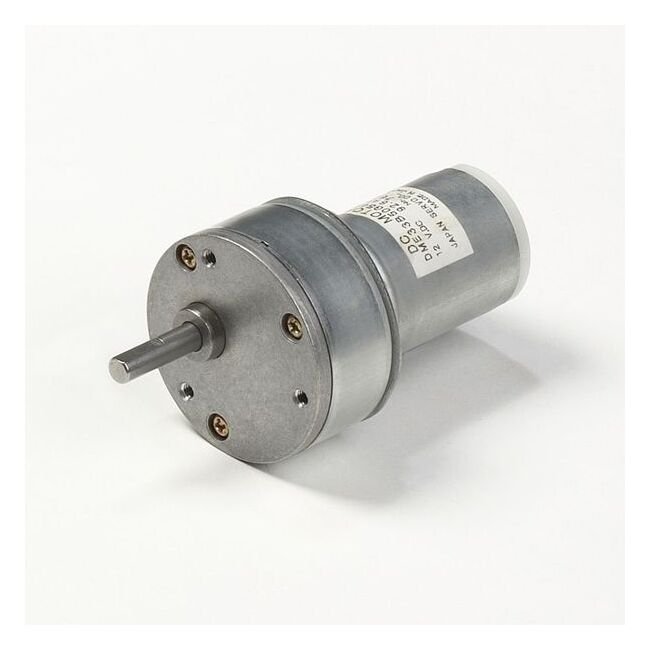

DME33 Series DC Motor with Gearbox 50G
DME33 Series DC Motor with Gearbox 50G
SKU:PER-39d3ea
Compact yet powerful DME33 Series Motors with Gearbox 50G, built for reliability and high performance.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
DME33 Series DC Motor with Gearbox 50G
$79.99
Quantity: 1
Claim Your Seller Account
DME33 Series DC Motor with Gearbox 50G
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME33 Series Motors with Gearbox 50G offer a compact design with high power output ranging from 0.7W to 26W, making them ideal for various applications. With a wide selection of gear heads and reduction ratios available, these motors ensure high performance and durability. Features include a long operating life, high heat dissipation, low noise, and robust construction for optimal reliability. Equipped with a magnetic revolution sensor and noise filter, these motors meet the stringent requirements of institutional and government procurement standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
420 mA | 0.42 A
Specifications Gear Ratio
27
Specifications Model Code
BA
Specifications Motor Frame Size
50 mm | 1.929 in
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Motor with Gearbox 50G
Specifications Rated Output
3.0 W
Specifications Rated Speed
137 r/min
Specifications Rated Torque
20.83 oz·in | 0.15 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME33
