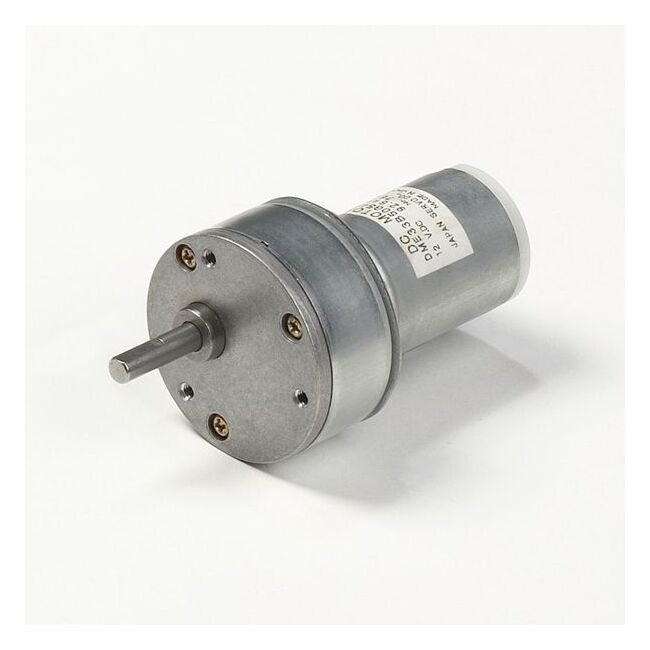

DME33 Series DC Motor with Gearbox 50G
DME33 Series DC Motor with Gearbox 50G
SKU:PER-136434
Compact and powerful DME33 Series DC Motor with Gearbox 50G for high-performance applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DME33 Series DC Motor with Gearbox 50G
$129.99
Quantity: 1
Claim Your Seller Account
DME33 Series DC Motor with Gearbox 50G
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME33 Series DC Motor with Gearbox 50G offers a compact size and high power ranging from 0.7W to 26W. With a variety of gear heads available, it ensures optimized performance and longevity. Featuring a long-life design suitable for over 1 million cycles, this motor excels in continuous operation with a lifespan of 1000 hours. Its high output capacity, heat dissipation, and heat resistance contribute to superior performance, while the robust construction grants a high radial load capacity. Additionally, the motor ensures low noise, increased insulation, and is compatible with various gear heads and reduction ratios, including a magnetic revolution sensor and noise filter.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
220 mA | 0.22 A
Specifications Gear Ratio
54
Specifications Model Code
BB
Specifications Motor Frame Size
50 mm | 1.929 in
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Motor with Gearbox 50G
Specifications Rated Output
3.0 W
Specifications Rated Speed
68.5 r/min
Specifications Rated Torque
43.05 oz·in | 0.30 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME33
