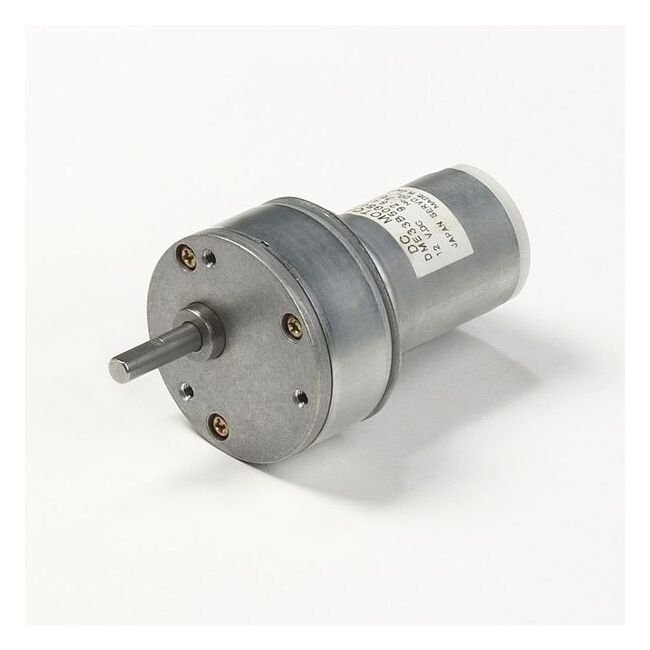

DME33 Series DC Motor with Gearbox 50G
DME33 Series DC Motor with Gearbox 50G
SKU:PER-702aa5
Compact, high-power DME33 Series DC Motor with Gearbox 50G for efficient and durable performance in various applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DME33 Series DC Motor with Gearbox 50G
$129.99
Quantity: 1
Claim Your Seller Account
DME33 Series DC Motor with Gearbox 50G
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME33 Series DC Motor with Gearbox 50G offers compact size and high power ranging from 0.7W to 26W, making it ideal for various applications. With a long-life design capable of over 1 million cycles, optimized for durability and efficiency. The motor provides high output with enhanced heat dissipation and heat resistance, ensuring reliable performance. Its high strength construction features a large diameter output shaft and ball bearings for increased radial load capacity. Additionally, it boasts low noise operation, improved insulation, and a wide selection of gear heads and reduction ratios to suit diverse user needs. Equipped with a magnetic revolution sensor and noise filter for added functionality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
220 mA | 0.22 A
Specifications Gear Ratio
256
Specifications Model Code
BB
Specifications Motor Frame Size
50 mm | 1.929 in
Specifications Product Type
DC Motor with Gearbox 50G
Specifications Rated Output
3.0 W
Specifications Rated Speed
15.7 r/min
Specifications Rated Torque
138.87 oz·in | 0.98 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME33
