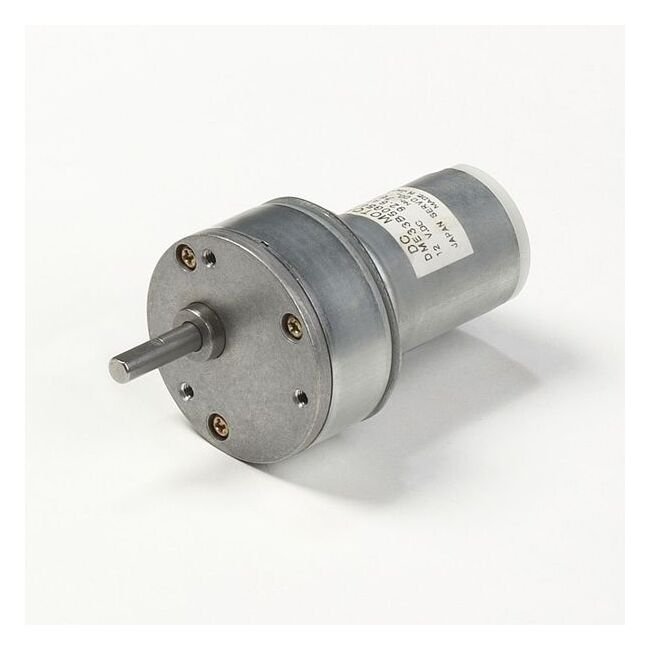

DME33 Series DC Motor with Gearbox 50G - 3.0W, 12V
DME33 Series DC Motor with Gearbox 50G - 3.0W, 12V
SKU:PER-333234
Compact, high-powered DME33 Series DC Motor with Gearbox 50G - ideal for durable and efficient institutional applications.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
DME33 Series DC Motor with Gearbox 50G - 3.0W, 12V
$79.99
Quantity: 1
Claim Your Seller Account
DME33 Series DC Motor with Gearbox 50G - 3.0W, 12V
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME33 Series Motor with Gearbox 50G offers a compact design with high power output ranging from 0.7W to 26W. With a variety of gear heads available, this motor features long-life operation of over 1 million cycles thanks to an optimized brush design. Its high heat dissipation and resistance ensure continuous operation for 1000 hours, while the robust construction provides high radial load capacity. This motor meets institutional procurement standards for durability, efficiency, and versatility, making it an ideal choice for a wide range of applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
420 mA | 0.42 A
Specifications Gear Ratio
256
Specifications Model Code
BA
Specifications Motor Frame Size
50 mm | 1.929 in
Specifications Product Type
DC Motor with Gearbox 50G
Specifications Rated Output
3.0 W
Specifications Rated Speed
15.7 r/min
Specifications Rated Torque
138.87 oz·in | 0.98 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME33
