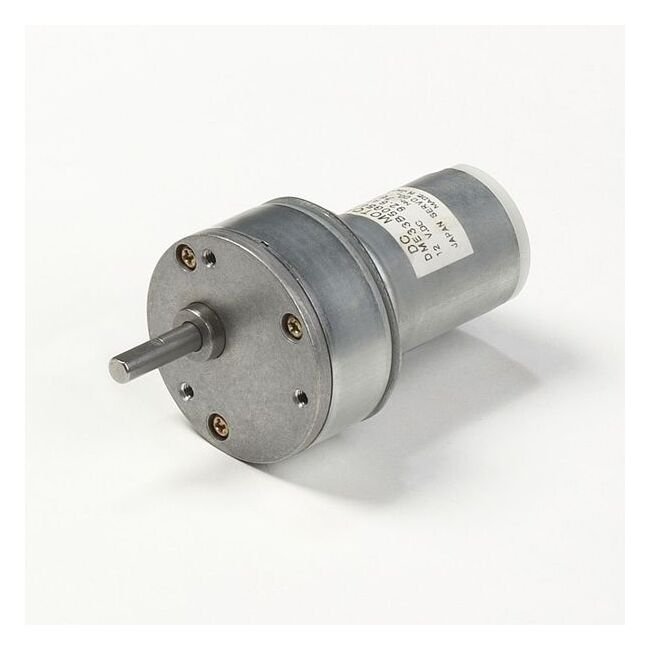

DME33 Series DC Motor with Gearbox 50G
DME33 Series DC Motor with Gearbox 50G
SKU:PER-90069e
Compact, powerful DME33 Series DC Motor with Gearbox 50G for high-performance applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DME33 Series DC Motor with Gearbox 50G
$89.99
Quantity: 1
Claim Your Seller Account
DME33 Series DC Motor with Gearbox 50G
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME33 Series DC Motor with Gearbox 50G offers compact size and high power ranging from 0.7W to 26W. With a variety of 224 modes available, this motor features long-life durability with over 1 million cycles of intermittent operation. It boasts high output capabilities, heat dissipation, and resistance for enhanced performance. The high radial load capacity, low noise level, and increased insulation make it ideal for a wide range of applications. Additionally, it comes with various gear heads, reduction ratios, and optional magnetic revolution sensor and noise filter.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
420 mA | 0.42 A
Specifications Gear Ratio
72
Specifications Model Code
BA
Specifications Motor Frame Size
50 mm | 1.929 in
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Motor with Gearbox 50G
Specifications Rated Output
3.0 W
Specifications Rated Speed
51.3 r/min
Specifications Rated Torque
58.33 oz·in | 0.41 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME33
