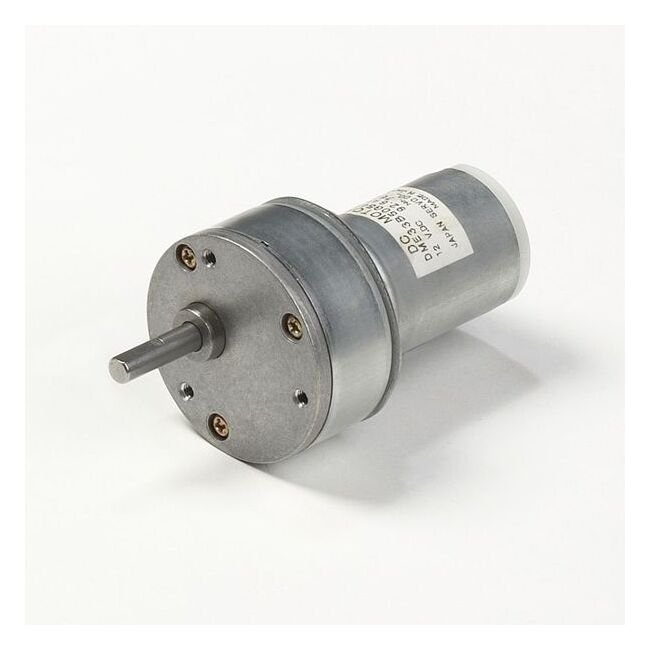

DME33 Series DC Motor with Gearbox 50G - High Power & Long-Life
DME33 Series DC Motor with Gearbox 50G - High Power & Long-Life
SKU:PER-669640
Compact, high-power DC Motors with Gearbox 50G for durable, efficient performance. Ideal for institutional buyers.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DME33 Series DC Motor with Gearbox 50G - High Power & Long-Life
$129.99
Quantity: 1
Claim Your Seller Account
DME33 Series DC Motor with Gearbox 50G - High Power & Long-Life
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME33 Series Motors with Gearbox 50G offer a compact design with high power ranging from 0.7W to 26W. Featuring a variety of gear heads and a selection of 224 modes, these motors are built for durability and efficiency. With a continuous operating life of 1000 hours, high heat dissipation, and resistance, these motors deliver optimal performance. The robust construction and large diameter output shaft with ball bearings ensure high strength and radial load capacity. Additionally, enjoy low noise and increased insulation with new resin brush holders. Ideal for institutional and government procurement standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
220 mA | 0.22 A
Specifications Gear Ratio
27
Specifications Model Code
BB
Specifications Motor Frame Size
50 mm | 1.929 in
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Motor with Gearbox 50G
Specifications Rated Output
3.0 W
Specifications Rated Speed
137 r/min
Specifications Rated Torque
20.83 oz·in | 0.15 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME33
