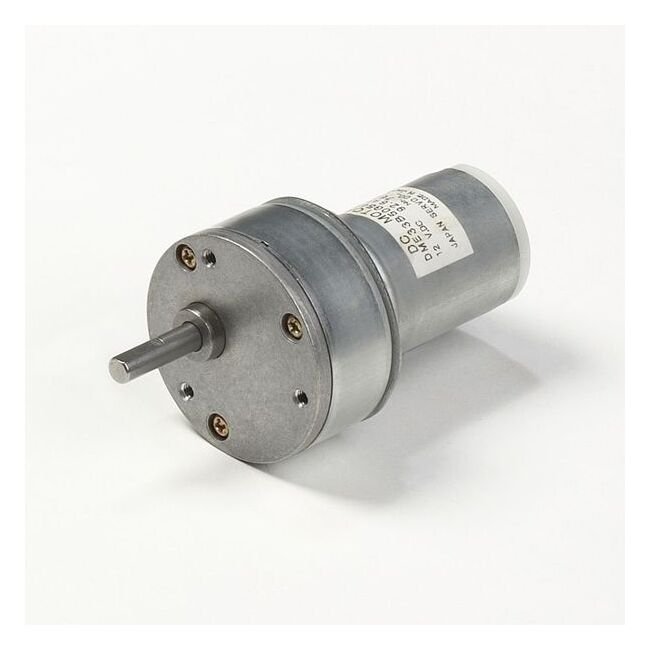

DME33 Series DC Motors with Gearbox 50G
DME33 Series DC Motors with Gearbox 50G
SKU:PER-6a4b51
Compact and powerful DC motors with gearbox, high durability and performance for industrial applications.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
DME33 Series DC Motors with Gearbox 50G
$69.99
Quantity: 1
Claim Your Seller Account
DME33 Series DC Motors with Gearbox 50G
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME33 Series Motors with Gearbox 50G offers a compact size and high power range of 0.7W to 26W. With a variety of 224 modes available, featuring optimized brush design for long-life operation over 1 million cycles. These motors ensure high output, heat dissipation, and resistance for superior performance. Equipped with robust construction, large diameter output shaft, and ball bearings for high radial load capacity. Choose from a wide selection of gear heads, reduction ratios, and optional magnetic revolution sensor for versatile applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
220 mA | 0.22 A
Specifications Gear Ratio
18
Specifications Model Code
BB
Specifications Motor Frame Size
50 mm | 1.929 in
Specifications Product Type
DC Motor with Gearbox 50G
Specifications Rated Output
3.0 W
Specifications Rated Speed
205 r/min
Specifications Rated Torque
15.28 oz·in | 0.11 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME33
