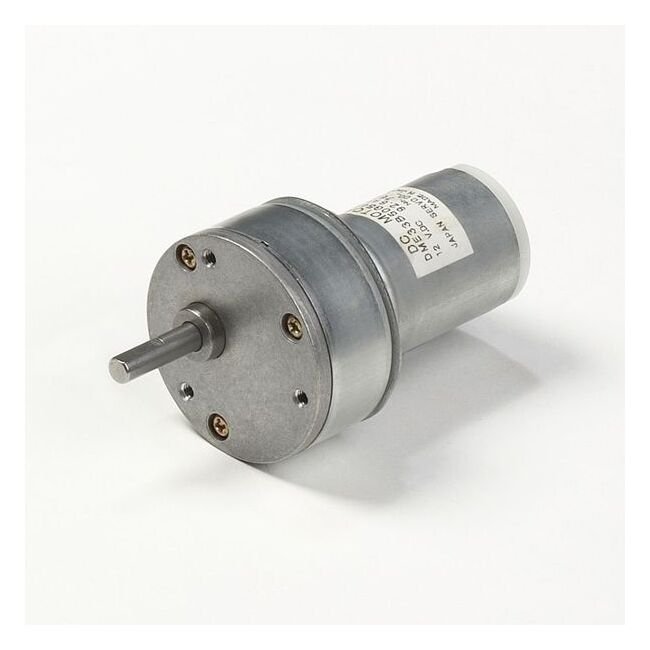

DME33 Series Gear Motors 50G
DME33 Series Gear Motors 50G
SKU:PER-50f190
Compact, high-power DME33 Series Gear Motors 50G with exceptional durability and performance. Ideal for various applications.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
DME33 Series Gear Motors 50G
$79.99
Quantity: 1
Claim Your Seller Account
DME33 Series Gear Motors 50G
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME33 Series Gear Motors 50G offer compact size and high power ranging from 0.7W to 26W, with a variety of gear heads available. Designed for durability, these motors feature optimized brush design for over 1 million cycles of intermittent operation and a continuous operating life of 1000 hours. With high output, heat dissipation, and resistance, they deliver exceptional performance. These motors boast high strength with a robust construction, large diameter output shaft, and ball bearings for high radial load capacity. Additionally, they ensure low noise, increased insulation, and are compatible with various gear heads and reduction ratios. Choose the DME33 Series for reliable performance and versatility.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
420 mA | 0.42 A
Specifications Gear Ratio
54
Specifications Model Code
BA
Specifications Motor Frame Size
50 mm | 1.929 in
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Motor with Gearbox 50G
Specifications Rated Output
3.0 W
Specifications Rated Speed
68.5 r/min
Specifications Rated Torque
43.05 oz·in | 0.30 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME33
