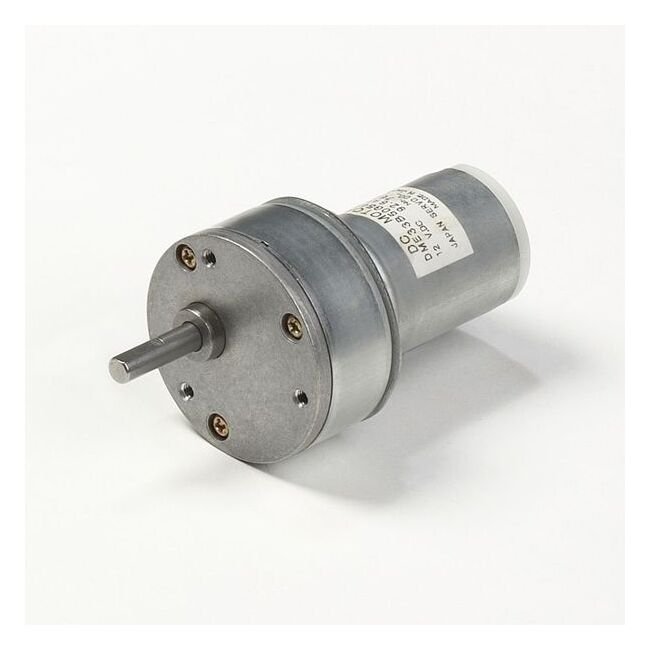

DME33 Series Motor with Gearbox 50G - High Power DC Motor
DME33 Series Motor with Gearbox 50G - High Power DC Motor
SKU:PER-7f5314
High power, compact DME33 Series Motor with Gearbox 50G for efficient and durable performance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DME33 Series Motor with Gearbox 50G - High Power DC Motor
$129.99
Quantity: 1
Claim Your Seller Account
DME33 Series Motor with Gearbox 50G - High Power DC Motor
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME33 Series Motor with Gearbox 50G is a powerful and compact DC motor designed for efficiency and durability. With a wide range of gear heads and reduction ratios available, this motor boasts a long operating life of over 1 million cycles, along with a continuous operating life of 1000 hours. Its high heat dissipation and heat resistance ensure maximum output, while the robust construction and ball bearings provide high radial load capacity. Additionally, features like low noise, increased insulation, and optional magnetic revolution sensor and noise filter make this motor ideal for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
220 mA | 0.22 A
Specifications Gear Ratio
72
Specifications Model Code
BB
Specifications Motor Frame Size
50 mm | 1.929 in
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Motor with Gearbox 50G
Specifications Rated Output
3.0 W
Specifications Rated Speed
51.3 r/min
Specifications Rated Torque
58.33 oz·in | 0.41 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME33
