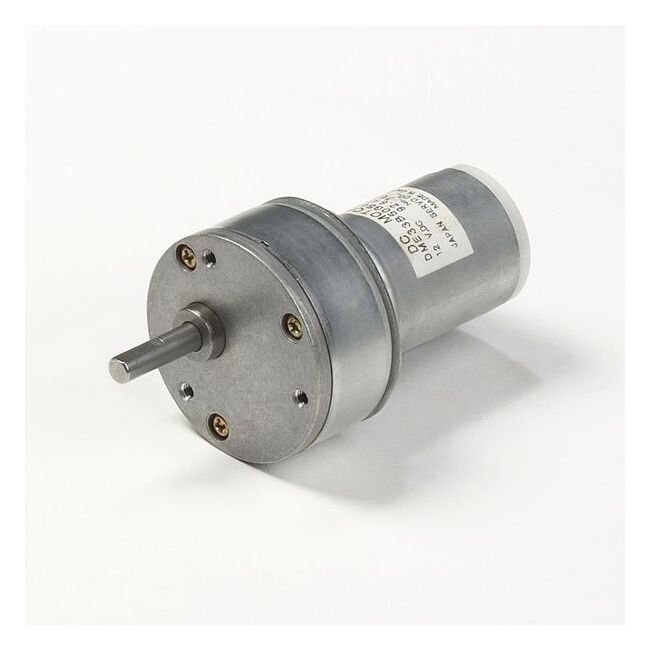

DME33 Series Motor with Gearbox 50G - High Power DC Motor
DME33 Series Motor with Gearbox 50G - High Power DC Motor
SKU:PER-32dcc3
High power DC motor with compact design, high heat dissipation, and long-life operation, ideal for various gear applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
DME33 Series Motor with Gearbox 50G - High Power DC Motor
$59.99
Quantity: 1
Claim Your Seller Account
DME33 Series Motor with Gearbox 50G - High Power DC Motor
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME33 Series Motors with Gearbox 50G offer a compact size and high power ranging from 0.7W to 26W. With a variety of gear heads available, including 32 Dia-80 Sq and others, these motors are designed for long-life performance, with over 1 million cycles of intermittent operation. They boast a continuous operating life of 1000 hours, high output, heat dissipation, and heat resistance for optimal performance. Additionally, these motors feature high strength with robust construction, large diameter output shaft, and ball bearings ensuring high radial load capacity. The model also includes a magnetic revolution sensor, noise filter, and a wide selection of gear heads and reduction ratios to meet diverse needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
220 mA | 0.22 A
Specifications Gear Ratio
9
Specifications Model Code
BB
Specifications Motor Frame Size
50 mm | 1.929 in
Specifications Product Type
DC Motor with Gearbox 50G
Specifications Rated Output
3.0 W
Specifications Rated Speed
411 r/min
Specifications Rated Torque
8.05 oz·in | 0.057 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME33
