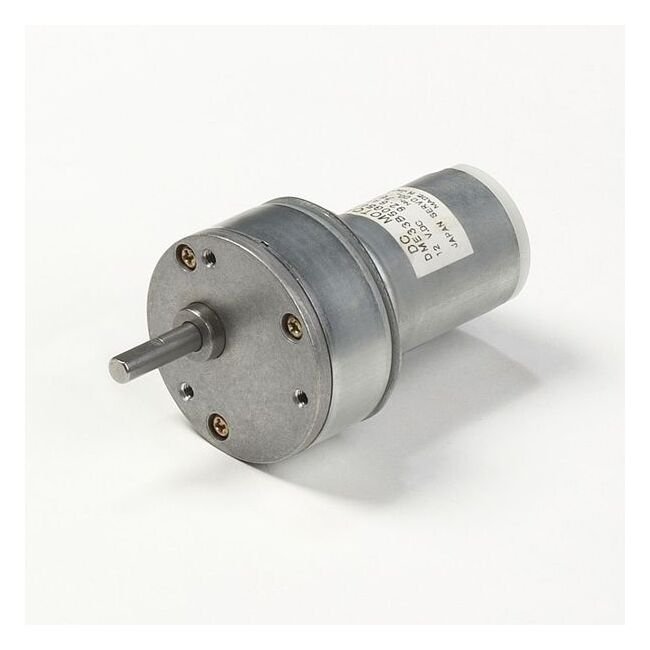

DME33 Series Motor with Gearbox 50G - High Power DC Motor
DME33 Series Motor with Gearbox 50G - High Power DC Motor
SKU:PER-9b3cad
High-power DC motor with durable construction, optimized for long-life operation and high output performance. Choose from a variety of gear heads for custom solutions.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
DME33 Series Motor with Gearbox 50G - High Power DC Motor
$149.99
Quantity: 1
Claim Your Seller Account
DME33 Series Motor with Gearbox 50G - High Power DC Motor
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME33 Series Motor with Gearbox 50G offers a compact design with high power ranging from 0.7W to 26W, perfect for a variety of applications. With 224 different models available, this motor provides exceptional performance and durability. Featuring optimized brush design for long-life operation, high heat dissipation, and resistance for increased output, robust construction for high radial load capacity, low noise operation, and enhanced insulation. Choose from a wide selection of gear heads and reduction ratios to meet your specific needs. Additionally, it comes with optional magnetic revolution sensor and noise filter for added functionality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
420 mA | 0.42 A
Specifications Gear Ratio
192
Specifications Model Code
BA
Specifications Motor Frame Size
50 mm | 1.929 in
Specifications Product Type
DC Motor with Gearbox 50G
Specifications Rated Output
3.0 W
Specifications Rated Speed
19.3 r/min
Specifications Rated Torque
138.87 oz·in | 0.98 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME33
