DME33 Series Motor with Pulse Generator
DME33 Series Motor with Pulse Generator
SKU:PER-79a98b
Compact and powerful DME33 Series Motor with Pulse Generator for precise and reliable performance in a variety of applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
DME33 Series Motor with Pulse Generator
$49.99
Quantity: 1
Claim Your Seller Account
DME33 Series Motor with Pulse Generator
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

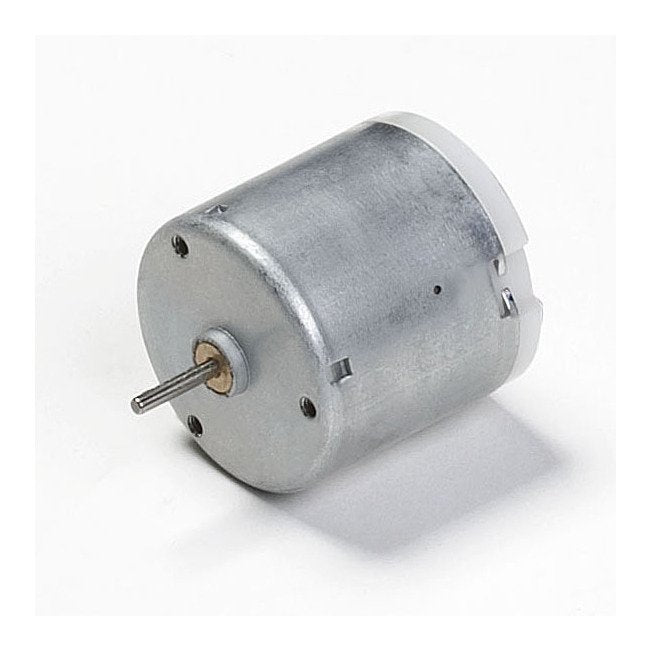

The DME33 Series Motor with Pulse Generator is a high-performance DC motor tailored for precision applications. With a compact design and power range of 0.7W to 26W, this motor offers exceptional versatility with 224 available modes. Built for longevity, it can handle over 1 million cycles of intermittent operation and boasts a continuous operating life of 1000 hours. Additionally, the motor features high output capabilities, heat resistance for optimal performance, and a robust construction for high radial load capacity. Equipped with a magnetic revolution sensor and noise filter, this motor ensures reliable and efficient operation in various settings, making it an ideal choice for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Connection Diagrams | Connection of Revolution Sensor | Gear-Head Design | Magnectic Type Revolution Sensor | Motor Selection Guide | Optical Type Revolution Sensor
Customize 0
Custom Designs
Dimensions 0
Dimensions | Revolution Sensor Magnet Type-DME33BMA
Specifications Current Rating
420 mA | 0.42 A
Specifications Model Code
BA
Specifications Motor Frame Size
26 mm | 1.024 in
Specifications No Load Current
0.06 A
Specifications No Load Speed
5000 r/min
Specifications Product Type
DC Motor
Specifications Rated Output
3.0 W
Specifications Rated Speed
3700 r/min
Specifications Rated Torque
7.8 mN·m | 1.11 oz·in
Specifications Rated Voltage
12 V
Specifications Series
DME33
Specifications Stall Torque
29 mN·m | 4.17 oz·in
Specifications Weight
100 g | 0.22 lb
Torque Curve 0
