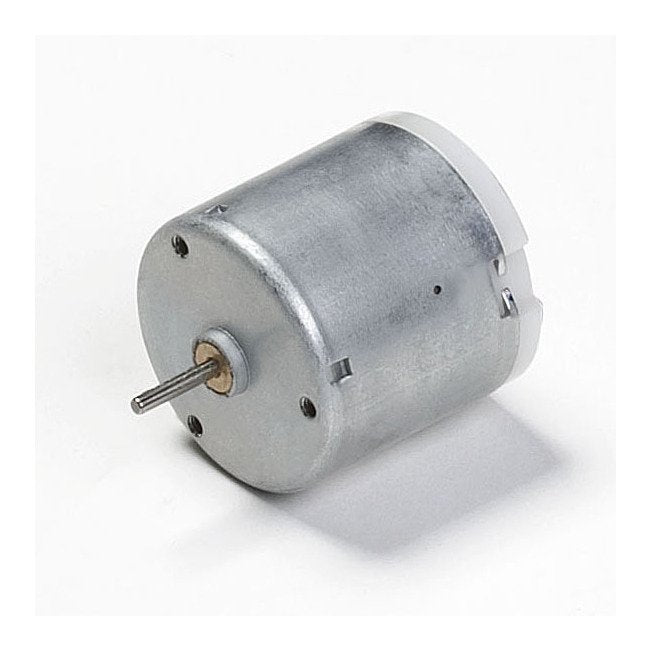

DME33 Series Motor with Pulse Generator
DME33 Series Motor with Pulse Generator
SKU:PER-bf8325
Compact, high-power DC motor with pulse generator, durable design, multiple gear head options, magnetic revolution sensor, ideal for industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DME33 Series Motor with Pulse Generator
$129.99
Quantity: 1
Claim Your Seller Account
DME33 Series Motor with Pulse Generator
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME33 Series Motor with Pulse Generator is a high-performance DC motor specifically designed for applications requiring compact size and high power output ranging from 0.7W to 26W. With a diverse range of 224 models and compatible gear heads (32 Dia-80 Sq and others), this motor offers exceptional versatility. Engineered for durability, it can handle intermittent operation over 1 million cycles with optimized brush design and has a continuous operating life of 1000 hours. The motor boasts high output capabilities with superior heat dissipation and resistance, ensuring efficient performance. Additionally, it features a robust construction with a large diameter output shaft and ball bearings for high radial load capacity. This motor operates quietly, provides increased insulation with new resin brush holders, and offers a wide selection of gear heads and reduction ratios. Ideal for various industrial applications, it is also equipped with a magnetic revolution sensor and noise filter for enhanced functionality.
Product Specifications
Additional Information 0
a1479.jpg | Connection Diagrams | Connection of Revolution Sensor | Gear-Head Design | Magnectic Type Revolution Sensor | Motor Selection Guide | Optical Type Revolution Sensor
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
60 mA | 0.06 A
Specifications Model Code
SB
Specifications Motor Frame Size
26 mm | 1.024 in
Specifications No Load Current
0.02 A
Specifications No Load Speed
5500 r/min
Specifications Product Type
DC Motor
Specifications Rated Output
0.7 W
Specifications Rated Speed
4500 r/min
Specifications Rated Torque
1.5 mN·m | 0.21 oz·in
Specifications Rated Voltage
24 V
Specifications Series
DME33
Specifications Stall Torque
7.8 mN·m | 1.11 oz·in
Specifications Weight
70 g | 0.15 lb
Torque Curve 0
