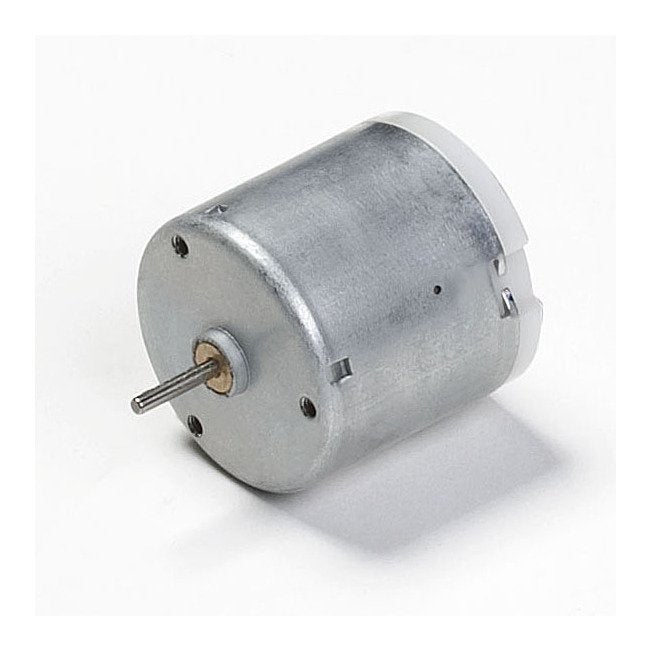

DME33 Series Motor with Pulse Generator (Model: DME33B)
DME33 Series Motor with Pulse Generator (Model: DME33B)
SKU:PER-742faf
Powerful and reliable DME33B Series Motor for diverse applications. Compact design, high performance, and versatile gear options.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DME33 Series Motor with Pulse Generator (Model: DME33B)
$89.99
Quantity: 1
Claim Your Seller Account
DME33 Series Motor with Pulse Generator (Model: DME33B)
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME33 Series Motor with Pulse Generator, model DME33B, is a compact yet powerful DC motor designed for reliability and high performance. With a rated voltage of 24V and a rated output of 3.0W, this motor offers a wide range of gear heads and reduction ratios to meet diverse operational needs. Its optimized brush design ensures long-life operation over 1 million cycles, with a continuous operating life of 1000 hours. The motor's high output capacity, heat dissipation, and heat resistance contribute to its superior performance and durability. Additionally, the DME33B features a robust construction with a large diameter output shaft and ball bearings for high radial load capacity, low noise, and increased insulation. It also comes equipped with a magnetic revolution sensor and noise filter for added functionality and efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Connection Diagrams | Connection of Revolution Sensor | Gear-Head Design | Magnectic Type Revolution Sensor | Motor Selection Guide | Optical Type Revolution Sensor
Customize 0
Custom Designs
Dimensions 0
Dimensions | Revolution Sensor Magnet Type-DME33BMA
Specifications Current Rating
220 mA | 0.22 A
Specifications Model Code
BB
Specifications Motor Frame Size
26 mm | 1.024 in
Specifications No Load Current
0.04 A
Specifications No Load Speed
5000 r/min
Specifications Product Type
DC Motor
Specifications Rated Output
3.0 W
Specifications Rated Speed
3700 r/min
Specifications Rated Torque
7.8 mN·m | 1.11 oz·in
Specifications Rated Voltage
24 V
Specifications Series
DME33
Specifications Stall Torque
29 mN·m | 4.17 oz·in
Specifications Weight
100 g | 0.22 lb
Torque Curve 0
