DME33 Series Motor with Pulse Generators
DME33 Series Motor with Pulse Generators
SKU:PER-df729c
Compact, high-power DME33 Series Motor with Pulse Generators for reliable performance in a variety of applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
DME33 Series Motor with Pulse Generators
$59.99
Quantity: 1
Claim Your Seller Account
DME33 Series Motor with Pulse Generators
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

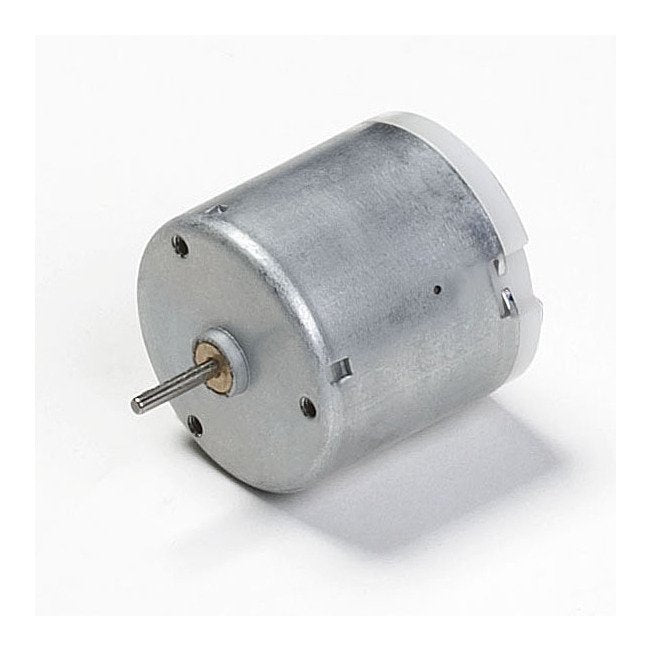

The DME33 Series Motor with Pulse Generators is a compact and high-power DC motor designed for reliable performance in various applications. With a rated output of 0.7W and a robust construction, this motor offers long-life operation exceeding 1 million cycles. It features high output capabilities, low noise levels, and increased insulation for optimal performance. Additionally, the motor is equipped with a magnetic revolution sensor and noise filter for enhanced functionality. Choose from a wide selection of gear heads and reduction ratios to suit diverse needs, making it an ideal choice for institutional and government procurement requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
a1479.jpg | Connection Diagrams | Connection of Revolution Sensor | DME33SA.jpg | Gear-Head Design | Magnectic Type Revolution Sensor | Motor Selection Guide | Optical Type Revolution Sensor
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
120 mA | 0.12 A
Specifications Model Code
SA
Specifications Motor Frame Size
26 mm | 1.024 in
Specifications No Load Current
0.05 A
Specifications No Load Speed
5500 r/min
Specifications Product Type
DC Motor
Specifications Rated Output
0.7 W
Specifications Rated Speed
4500 r/min
Specifications Rated Torque
1.5 mN·m | 0.21 oz·in
Specifications Rated Voltage
12 V
Specifications Series
DME33
Specifications Stall Torque
7.8 mN·m | 1.11 oz·in
Specifications Weight
70 g | 0.15 lb
Torque Curve 0
