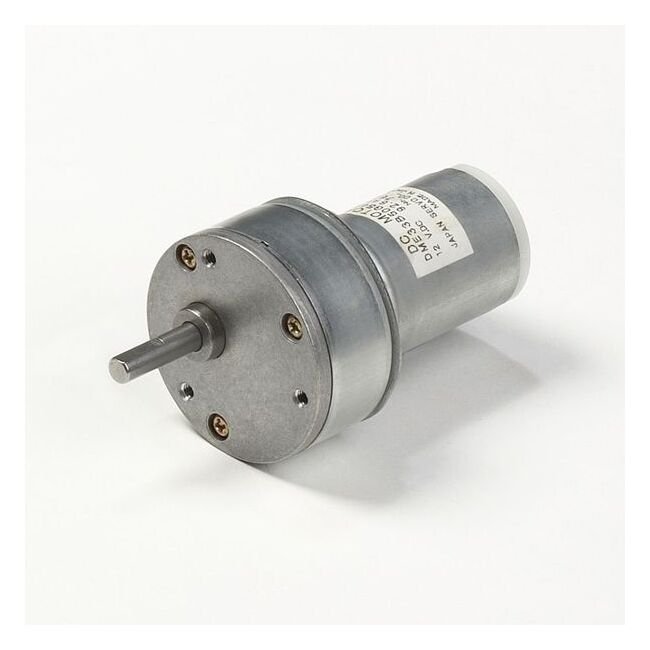

DME33 Series Motors with Gearbox 50G - High Power DC Motor
DME33 Series Motors with Gearbox 50G - High Power DC Motor
SKU:PER-22e3c2
Powerful and reliable DC motor with gearbox for industrial applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
DME33 Series Motors with Gearbox 50G - High Power DC Motor
$99.99
Quantity: 1
Claim Your Seller Account
DME33 Series Motors with Gearbox 50G - High Power DC Motor
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME33 Series Motors with Gearbox 50G offer exceptional performance for a variety of applications. With a power range of 0.7W to 26W, these motors are designed for longevity and high output. Featuring a compact size and a variety of gear heads, they provide continuous operation over 1 million cycles. The high heat dissipation and resistance contribute to their reliability, while the large selection of gear heads ensures compatibility with diverse needs. Additionally, models with magnetic revolution sensors and noise filters are available.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
420 mA | 0.42 A
Specifications Gear Ratio
96
Specifications Model Code
BA
Specifications Motor Frame Size
50 mm | 1.929 in
Specifications Product Type
DC Motor with Gearbox 50G
Specifications Rated Output
3.0 W
Specifications Rated Speed
38.5 r/min
Specifications Rated Torque
69.44 oz·in | 0.49 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME33
