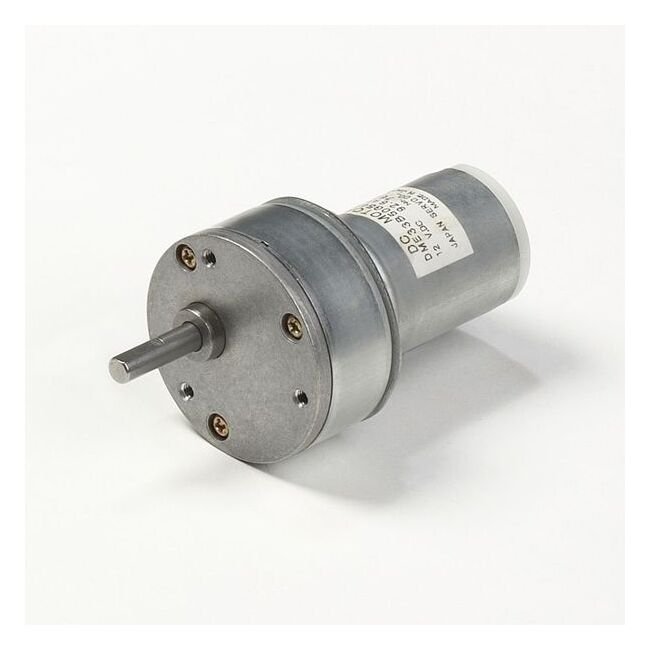

DME33 Series Motors with Gearbox 50G - High Power DC Motor
DME33 Series Motors with Gearbox 50G - High Power DC Motor
SKU:PER-75818b
Compact and powerful DME33 Series Motors with Gearbox 50G for optimal performance in diverse applications.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
DME33 Series Motors with Gearbox 50G - High Power DC Motor
$199.99
Quantity: 1
Claim Your Seller Account
DME33 Series Motors with Gearbox 50G - High Power DC Motor
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME33 Series Motors with Gearbox 50G offer compact size and high power ranging from 0.7W to 26W, making them ideal for various applications. With a robust design, these motors ensure long-life operation with over 1 million cycles. They feature high heat dissipation and heat resistance for increased output, along with a large selection of gear heads and reduction ratios. Additionally, the motors come with optional magnetic revolution sensors and noise filters for enhanced performance.
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
220 mA | 0.22 A
Specifications Gear Ratio
36
Specifications Model Code
BB
Specifications Motor Frame Size
50 mm | 1.929 in
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Motor with Gearbox 50G
Specifications Rated Output
3.0 W
Specifications Rated Speed
102 r/min
Specifications Rated Torque
29.16 oz·in | 0.21 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME33
