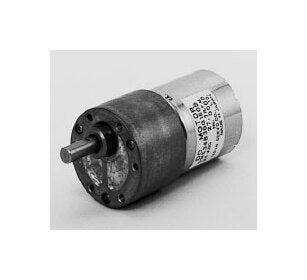

DME34 Series DC Motor with Gearbox 36G
DME34 Series DC Motor with Gearbox 36G
SKU:PER-f9f9fc
Compact, powerful DME34 Series DC Motor with Gearbox 36G for high-performance institutional applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DME34 Series DC Motor with Gearbox 36G
$89.99
Quantity: 1
Claim Your Seller Account
DME34 Series DC Motor with Gearbox 36G
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME34 Series DC Motor with Gearbox 36G combines compact size and high power ranging from 0.7 W to 26 W. With a variety of gear heads available, including 32 Dia to 80 Sq options, this motor boasts long-lasting performance with optimized brush design for over 1 million cycles of intermittent operation. It features high heat dissipation, heat resistance for higher output, and robust construction for a high radial load capacity. Additionally, this motor ensures low noise, increased insulation, and offers a large selection of gear heads and reduction ratios to meet diverse institutional procurement requirements. Available with a magnetic revolution sensor and noise filter.
Product Specifications
Additional Information 0
DME34-With-Gearbox-36G.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
650 mA | 0.65 A
Specifications Gear Ratio
180
Specifications L1
2.465 in | 62.6 mm
Specifications L2
1.075 in | 27.3 mm
Specifications Model Code
BA
Specifications Motor Frame Size
37 mm | 1.457 in
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Motor with Gearbox 36G
Specifications Rated Output
4.5 W
Specifications Rated Speed
25.5 r/min
Specifications Rated Torque
55.55 oz·in | 0.39 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME34
Specifications Weight
230 g | 0.51 lb
