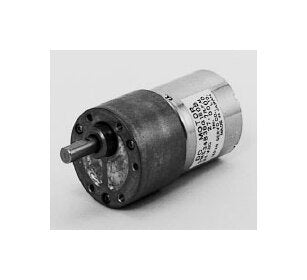

DME34 Series DC Motor with Gearbox 36G - High Power Precision Solution
DME34 Series DC Motor with Gearbox 36G - High Power Precision Solution
SKU:PER-c770ae
Compact, high-power DME34 Series DC Motor with Gearbox 36G for durable, efficient performance.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
DME34 Series DC Motor with Gearbox 36G - High Power Precision Solution
$149.99
Quantity: 1
Claim Your Seller Account
DME34 Series DC Motor with Gearbox 36G - High Power Precision Solution
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME34 Series Motors with Gearbox 36G offer a compact size and high power ranging from 0.7 W to 26 W, making them ideal for a variety of applications. With a long-life design allowing for over 1 million cycles of intermittent operation, these motors provide exceptional durability. The high output, heat dissipation, and heat resistance ensure efficient performance, while the robust construction and large selection of gear heads guarantee high radial load capacity. Additionally, the motors feature low noise, increased insulation, and are available with magnetic revolution sensors and noise filters for enhanced functionality.
Product Specifications
Additional Information 0
DME34-With-Gearbox-36G.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
200 mA | 0.2 A
Specifications Gear Ratio
10
Specifications L1
1.941 in | 49.3 mm
Specifications L2
0.78 in | 19.8 mm
Specifications Model Code
SA
Specifications Motor Frame Size
37 mm | 1.457 in
Specifications Product Type
DC Motor with Gearbox 36G
Specifications Rated Output
1.3 W
Specifications Rated Speed
330 r/min
Specifications Rated Torque
4.44 oz·in | 0.031 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME34
Specifications Weight
200 g | 0.44 lb
