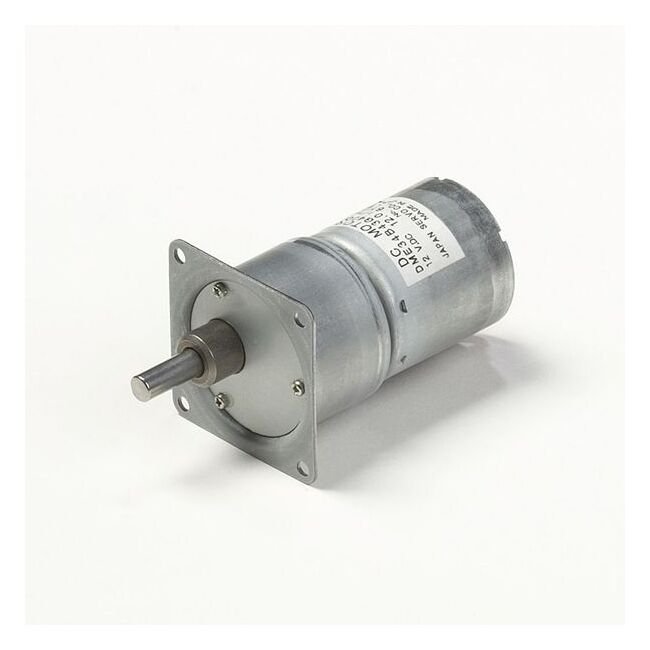

DME34 Series DC Motor with Gearbox 43G
DME34 Series DC Motor with Gearbox 43G
SKU:PER-6698ff
Compact, powerful DME34 Series Motors with Gearbox 43G - high efficiency, durability, and versatile gear options for various needs.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
DME34 Series DC Motor with Gearbox 43G
$189.99
Quantity: 1
Claim Your Seller Account
DME34 Series DC Motor with Gearbox 43G
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME34 Series Motors with Gearbox 43G offer high power efficiency ranging from 0.7 W to 26 W, catering to various institutional and consumer needs. With a compact size and a wide selection of gear heads, these motors ensure durability with intermittent operation over 1 million cycles, continuous operating life of 1000 hours, and high output capacity. The robust construction, high heat dissipation, and resistance result in enhanced performance. Featuring low noise operation, increased insulation, and a large array of gear heads and reduction ratios, these motors are versatile and reliable for institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
DME34B43G.jpg | DME34-With-Gearbox-43G.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
650 mA | 0.65 A
Specifications Gear Ratio
75
Specifications L1
2.295 in | 58.3 mm
Specifications L2
0.917 in | 23.3 mm
Specifications Model Code
BA
Specifications Motor Frame Size
43 x 43 mm | 1.693 x 1.693 in
Specifications Product Type
DC Motor with Gearbox 43G
Specifications Rated Output
4.5 W
Specifications Rated Speed
54.9 r/min
Specifications Rated Torque
55.55 oz·in | 0.39 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME34
Specifications Weight
210 g | 0.46 lb
