DME34 Series DC Motor with Gearbox 43G - High Power 4.5W, 600 Gear Ratio
DME34 Series DC Motor with Gearbox 43G - High Power 4.5W, 600 Gear Ratio
SKU:PER-2018d6
Compact yet powerful DC motor with 4.5W output, 600 gear ratio. Optimal for durability, high performance, and low noise applications.
Regular price
$44.99
Regular price
Sale price
$44.99
Unit price
per
Initiate Order
DME34 Series DC Motor with Gearbox 43G - High Power 4.5W, 600 Gear Ratio
$44.99
Quantity: 1
Claim Your Seller Account
DME34 Series DC Motor with Gearbox 43G - High Power 4.5W, 600 Gear Ratio
$44.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

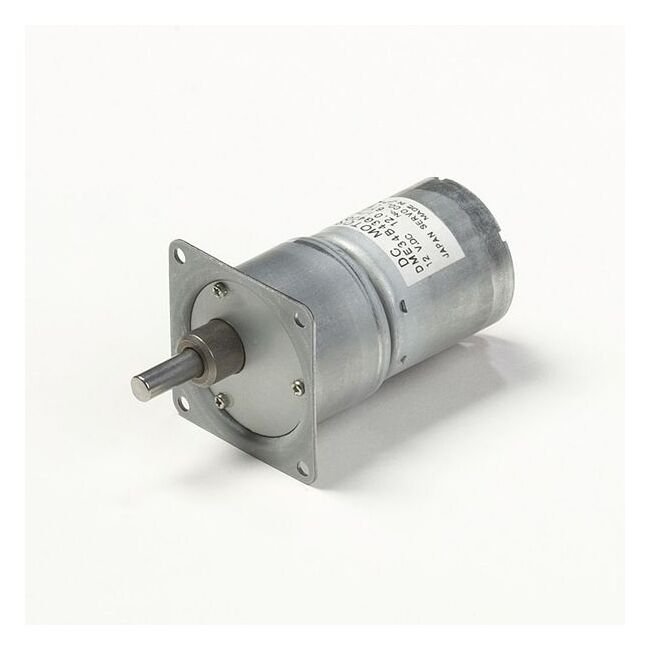

The DME34 Series DC Motor with Gearbox 43G is a powerhouse in a compact package, offering a rated output of 4.5W and a high gear ratio of 600. Designed for durability and performance, this motor features optimized brush design for long-life operation, heat dissipation, and resistance for higher output, and robust construction for high strength. With low noise and increased insulation, it also provides a selection of gear heads and reduction ratios. Ideal for a wide range of applications requiring reliability and efficiency.
Product Specifications
Additional Information 0
DME34B43G.jpg | DME34-With-Gearbox-43G.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
650 mA | 0.65 A
Specifications Gear Ratio
600
Specifications L1
2.492 in | 63.3 mm
Specifications L2
1.114 in | 28.3 mm
Specifications Model Code
BA
Specifications Motor Frame Size
43 x 43 mm | 1.693 x 1.693 in
Specifications Product Type
DC Motor with Gearbox 43G
Specifications Rated Output
4.5 W
Specifications Rated Speed
8.1 r/min
Specifications Rated Torque
55.55 oz·in | 0.39 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME34
Specifications Weight
210 g | 0.46 lb
