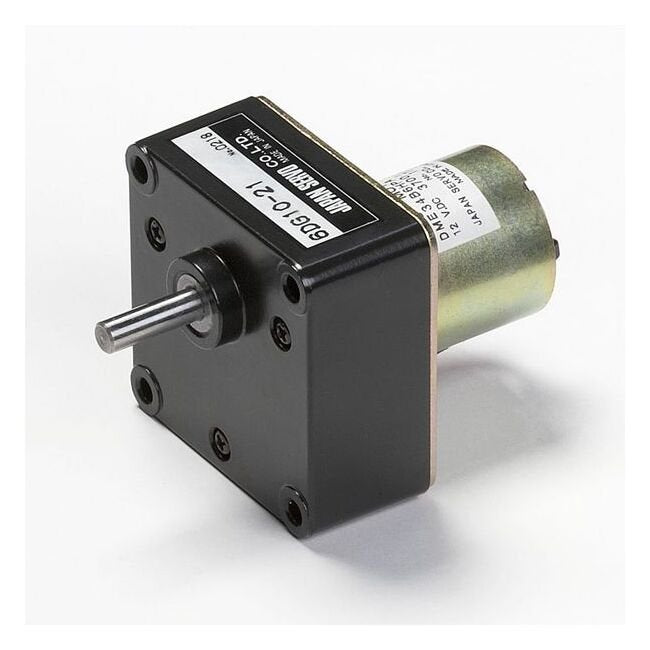

DME34 Series DC Motor with Gearbox 60G
DME34 Series DC Motor with Gearbox 60G
SKU:PER-f74951
Compact and powerful DME34 Series DC Motor with Gearbox 60G: high performance in a small package.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DME34 Series DC Motor with Gearbox 60G
$89.99
Quantity: 1
Claim Your Seller Account
DME34 Series DC Motor with Gearbox 60G
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME34 Series DC Motor with Gearbox 60G is a powerhouse of compact size, offering high power ranging from 0.7 W to 26 W. With a variety of gear head options, including 32 Dia to 80 Sq and more, it ensures exceptional versatility. Designed for longevity, it boasts over 1 million cycles of intermittent operation, with a continuous operating life of 1000 hours. This motor delivers high output through superior heat dissipation and heat resistance, along with high radial load capacity for robust construction. It features low noise, increased insulation, and a large selection of gear heads and reduction ratios, making it suitable for diverse needs. Moreover, it comes with options for a magnetic revolution sensor and noise filter.
Product Specifications
Additional Information 0
DME34B6HP.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
650 mA | 0.65 A
Specifications Frame Size
61 x 61 mm | 2.402 x 2.402 in
Specifications Gear Ratio
750
Specifications Model Code
BA
Specifications Note
6DG gearbox are available with either 4.5 mm diameter mounting holes or M4 x 6 mm tapped holes. Gearboxes with 4.5 mm diameter mounting holes are available from stock. When ordering, please write the motor model and gearbox model numbers separately, as in the following example :DME34B6HPB (Pinion Shaft Motor) 6DG_ (Gearbox) Gearboxes with M4 x 6 mm tapped mounting holes are available on request. When ordering, please write the combine motor and gearbox model, as in the following example: DME34B6H_B
Specifications Product Type
DC Motor with Gearbox 60G
Specifications Rated Output
4.5 W
Specifications Rated Speed
6.3 r/min
Specifications Rated Torque
138.87 oz·in | 0.98 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME34
