DME34 Series DC Motor with Gearbox 60G
DME34 Series DC Motor with Gearbox 60G
SKU:PER-4b0b08
Compact, high-power DC motor with gearbox for reliable and efficient operation in demanding applications.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
DME34 Series DC Motor with Gearbox 60G
$79.99
Quantity: 1
Claim Your Seller Account
DME34 Series DC Motor with Gearbox 60G
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

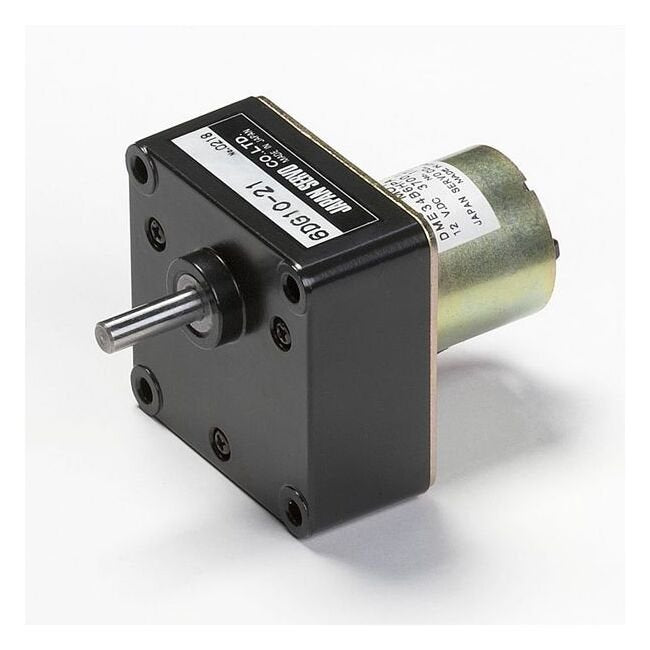

The DME34 Series DC Motor with Gearbox 60G is a versatile and powerful solution for various applications. With a compact size and high power output ranging from 0.7 W to 26 W, this motor features a long-life design optimized for intermittent operation over 1 million cycles. It offers high output performance with excellent heat dissipation and resistance, ensuring durability and reliability. Additionally, it provides low noise operation and increased insulation with new resin brush holders, making it ideal for institutional settings. The availability of a wide selection of gear heads and reduction ratios caters to diverse needs, while options like a magnetic revolution sensor and noise filter enhance functionality.
Product Specifications
Additional Information 0
DME34B6HP.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
100 mA | 0.1 A
Specifications Frame Size
61 x 61 mm | 2.402 x 2.402 in
Specifications Gear Ratio
750
Specifications Model Code
SB
Specifications Note
6DG gearbox are available with either 4.5 mm diameter mounting holes or M4 x 6 mm tapped holes. Gearboxes with 4.5 mm diameter mounting holes are available from stock. When ordering, please write the motor model and gearbox model numbers separately, as in the following example :DME34B6HPB (Pinion Shaft Motor) 6DG_ (Gearbox) Gearboxes with M4 x 6 mm tapped mounting holes are available on request. When ordering, please write the combine motor and gearbox model, as in the following example: DME34B6H_B
Specifications Product Type
DC Motor with Gearbox 60G
Specifications Rated Output
1.3 W
Specifications Rated Speed
5 r/min
Specifications Rated Torque
138.87 oz·in | 0.98 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME34
