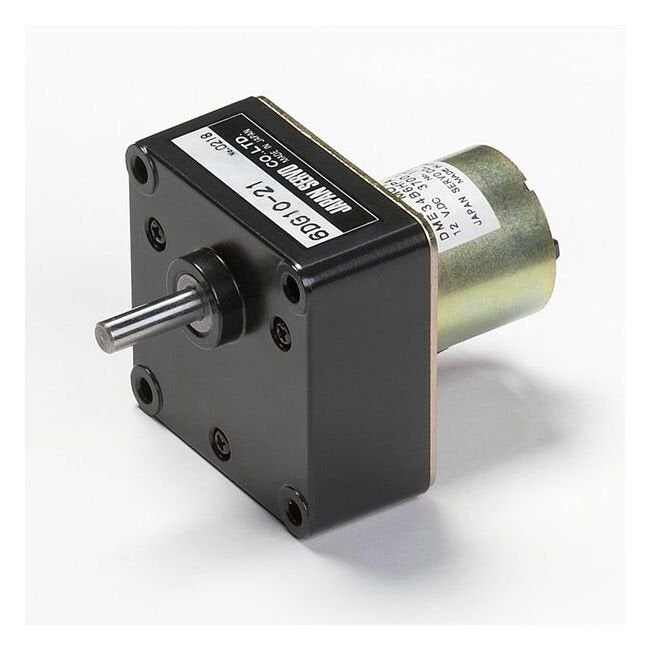

DME34 Series DC Motor with Gearbox 60G
DME34 Series DC Motor with Gearbox 60G
SKU:PER-fa0838
Compact, high-power DME34 Series Motors with Gearbox 60G offer reliable performance and versatile gear options for institutional applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DME34 Series DC Motor with Gearbox 60G
$89.99
Quantity: 1
Claim Your Seller Account
DME34 Series DC Motor with Gearbox 60G
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME34 Series Motors with Gearbox 60G offer a compact size and high power range from 0.7 W to 26 W, ideal for a variety of applications. With a robust construction and optimized brush design, these motors ensure long-life performance over 1 million cycles of intermittent operation. They boast high heat dissipation and heat resistance for increased output, while the large selection of gear heads and reduction ratios cater to diverse needs. The motors are designed for low noise, increased insulation, and exceptional strength, featuring ball bearings, a large diameter output shaft, and new resin brush holders. Available with magnetic revolution sensors and noise filters, these motors are a reliable choice for demanding institutional requirements.
Product Specifications
Additional Information 0
DME34B6HP.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
650 mA | 0.65 A
Specifications Frame Size
61 x 61 mm | 2.402 x 2.402 in
Specifications Gear Ratio
1800
Specifications Model Code
BA
Specifications Note
6DG gearbox are available with either 4.5 mm diameter mounting holes or M4 x 6 mm tapped holes. Gearboxes with 4.5 mm diameter mounting holes are available from stock. When ordering, please write the motor model and gearbox model numbers separately, as in the following example :DME34B6HPB (Pinion Shaft Motor) 6DG_ (Gearbox) Gearboxes with M4 x 6 mm tapped mounting holes are available on request. When ordering, please write the combine motor and gearbox model, as in the following example: DME34B6H_B
Specifications Product Type
DC Motor with Gearbox 60G
Specifications Rated Output
4.5 W
Specifications Rated Speed
2.7 r/min
Specifications Rated Torque
138.87 oz·in | 0.98 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME34
