DME34 Series DC Motor with Gearbox L
DME34 Series DC Motor with Gearbox L
SKU:PER-c196f1
Compact, powerful DME34 Series DC Motor with Gearbox L for high-performance applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
DME34 Series DC Motor with Gearbox L
$59.99
Quantity: 1
Claim Your Seller Account
DME34 Series DC Motor with Gearbox L
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

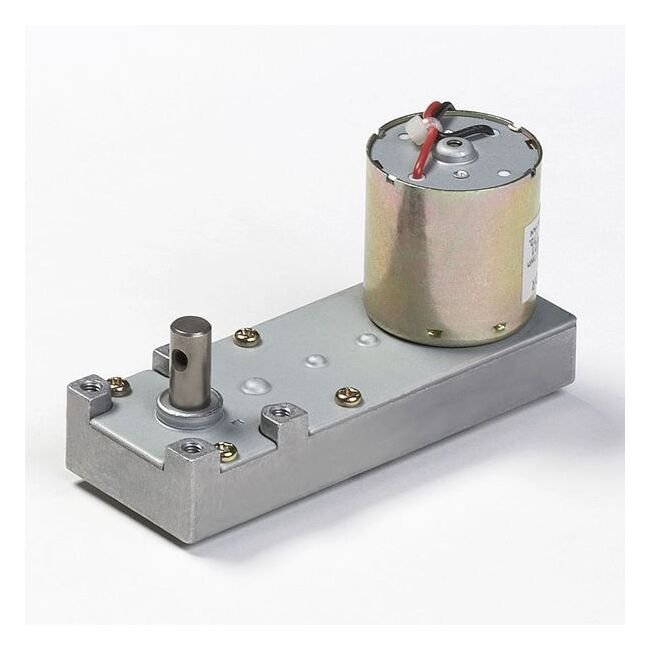

The DME34 Series DC Motor with Gearbox L offers a compact size and high power range from 0.7 W to 26 W. With a variety of gear heads available, including 32 Dia to 80 Sq and more, this motor ensures long-life performance with over 1 million cycles of intermittent operation. Its high output capacity and heat resistance allow for continuous operation up to 1000 hours, while the robust construction and large diameter output shaft provide high radial load capacity. This motor features low noise operation, increased insulation, and comes with a wide selection of gear heads and reduction ratios to suit various needs. Additionally, it includes a magnetic revolution sensor and noise filter for enhanced functionality.
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
410 mA | 0.41 A
Specifications Gear Ratio
30
Specifications L
59.8 mm
Specifications Model Code
KB
Specifications Motor Frame Size
38 x 100 mm | .866 x 3.937 in
Specifications Product Type
DC Motor with Gearbox L
Specifications Rated Output
7 W
Specifications Rated Speed
143 r/min
Specifications Rated Torque
36.81 oz·in | 0.26 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME34
Specifications Weight
310 g | 0.68 lb
