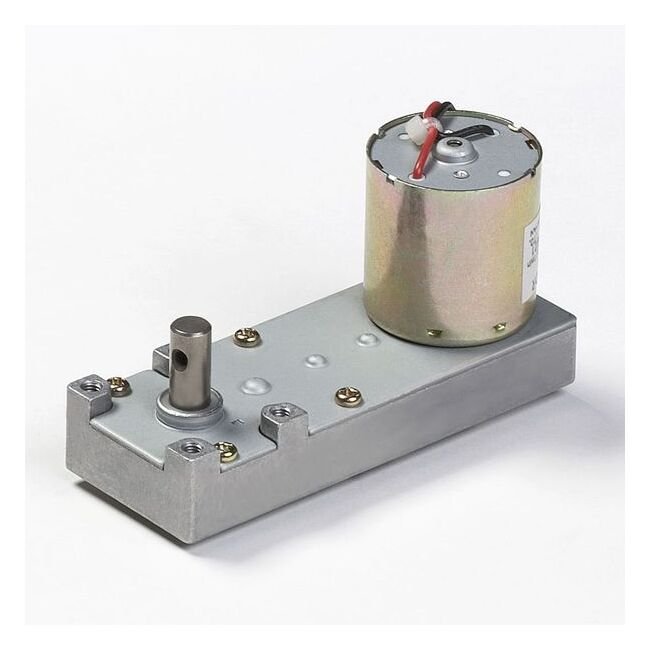

DME34 Series DC Motor with Gearbox L - 4.5W, 12V, 120 Gear Ratio
DME34 Series DC Motor with Gearbox L - 4.5W, 12V, 120 Gear Ratio
SKU:PER-8f9ab2
High-performance DME34 Series DC Motor with Gearbox L - long-lasting, low noise, high output.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
DME34 Series DC Motor with Gearbox L - 4.5W, 12V, 120 Gear Ratio
$99.99
Quantity: 1
Claim Your Seller Account
DME34 Series DC Motor with Gearbox L - 4.5W, 12V, 120 Gear Ratio
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME34 Series DC Motor with Gearbox L offers exceptional performance with a power range of 0.7W to 26W. Designed for durability, it boasts a long operating life of over 1 million cycles and 1000 hours of continuous operation. With high heat dissipation and resistance, this motor delivers superior output while maintaining low noise levels. Equipped with a variety of gear heads, large selection of reduction ratios, and optional magnetic revolution sensor, it meets the diverse needs of institutional and government procurement requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
650 mA | 0.65 A
Specifications Gear Ratio
120
Specifications L
49.8 mm
Specifications Model Code
BA
Specifications Motor Frame Size
38 x 100 mm | .866 x 3.937 in
Specifications Product Type
DC Motor with Gearbox L
Specifications Rated Output
4.5 W
Specifications Rated Speed
30.8 r/min
Specifications Rated Torque
118.04 oz·in | 0.83 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME34
Specifications Weight
280 g | 0.62 lb
