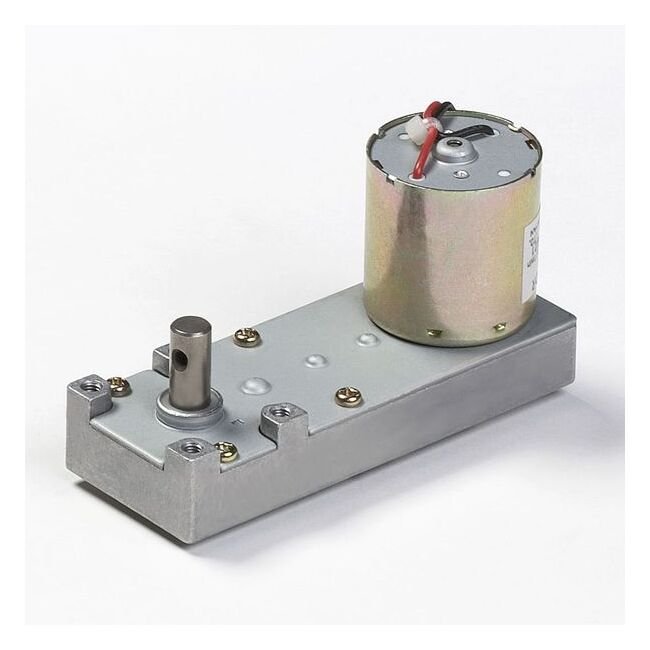

DME34 Series DC Motor with Gearbox L - High Power Precision Gearmotor
DME34 Series DC Motor with Gearbox L - High Power Precision Gearmotor
SKU:PER-2ba096
Compact, high-power DME34 Series Motors with Gearbox L for durable, low-noise operation with various gear options.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
DME34 Series DC Motor with Gearbox L - High Power Precision Gearmotor
$149.99
Quantity: 1
Claim Your Seller Account
DME34 Series DC Motor with Gearbox L - High Power Precision Gearmotor
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME34 Series Motors with Gearbox L offer a compact size with high power ranging from 0.7 W to 26 W, making them ideal for a wide range of applications. With a variety of gear options available, including 32 Dia-80 Sq and others, these motors are designed for durability and performance. Featuring a long-life design for over 1 million cycles, high output capability due to superior heat dissipation, and high radial load capacity, these motors ensure reliable operation. Additionally, they boast low noise levels, increased insulation, and a selection of gear heads and reduction ratios to meet diverse needs. Equipped with a magnetic revolution sensor and noise filter, these motors are tailored for precision and efficiency.
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
310 mA | 0.31 A
Specifications Gear Ratio
255
Specifications L
49.8 mm
Specifications Model Code
BB
Specifications Motor Frame Size
38 x 100 mm | .866 x 3.937 in
Specifications Product Type
DC Motor with Gearbox L
Specifications Rated Output
4.5 W
Specifications Rated Speed
16.8 r/min
Specifications Rated Torque
138.87 oz·in | 0.98 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME34
Specifications Weight
280 g | 0.62 lb
