DME34 Series DC Motor with Gearbox L - Model SA
DME34 Series DC Motor with Gearbox L - Model SA
SKU:PER-448655
Compact, high-power DC motor with Gearbox L and optimized performance for durability and efficiency.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
DME34 Series DC Motor with Gearbox L - Model SA
$159.99
Quantity: 1
Claim Your Seller Account
DME34 Series DC Motor with Gearbox L - Model SA
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

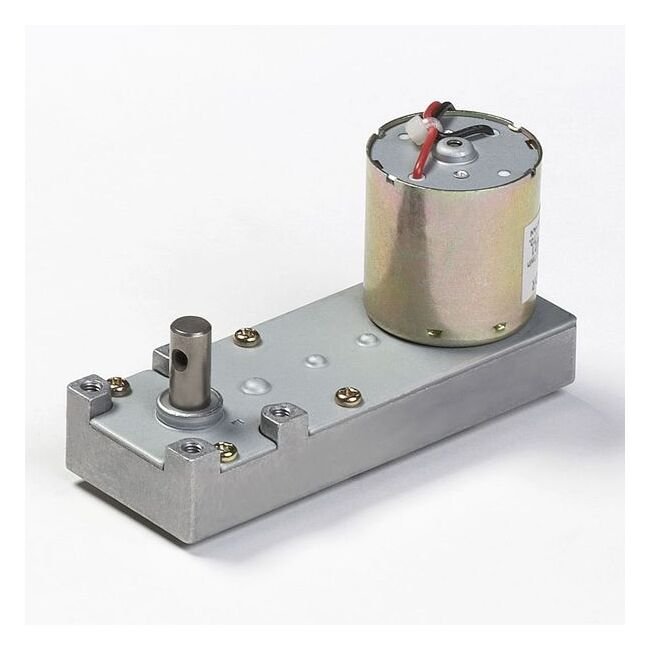

The DME34 Series Motors with Gearbox L, Model SA, offer compact size and high power output ranging from 0.7 W to 26 W. With a variety of gear heads and gear ratios available, these motors feature long-life operation, high output, and strength. They are designed for low noise, increased insulation, and efficiency. Ideal for applications requiring reliable performance and durability.
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
200 mA | 0.2 A
Specifications Gear Ratio
255
Specifications L
44.3 mm
Specifications Model Code
SA
Specifications Motor Frame Size
38 x 100 mm | .866 x 3.937 in
Specifications Product Type
DC Motor with Gearbox L
Specifications Rated Output
1.3 W
Specifications Rated Speed
13 r/min
Specifications Rated Torque
83.32 oz·in | 0.59 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME34
Specifications Weight
270 g | 0.6 lb
