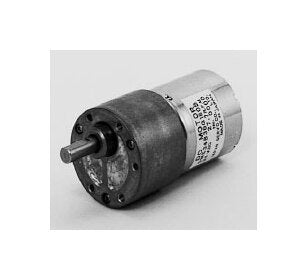

The DME34 Series Motors with Gearbox 36G offer compact yet powerful performance ranging from 0.7 W to 26 W. With a wide variety of gear heads available, including sizes from 32 Dia to 80 Sq and more, these motors are designed for longevity and high output. Featuring optimized brush design for over 1 million cycles of intermittent operation, a continuous operating life of 1000 hours, and high heat dissipation for increased output, these motors are built to withstand high radial loads. The inclusion of a magnetic revolution sensor and noise filter adds to their versatility, making them ideal for a range of institutional and industrial applications.
Product Specifications
Additional Information 0
DME34-With-Gearbox-36G.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
100 mA | 0.1 A
Specifications Gear Ratio
20
Specifications L1
2.039 in | 51.8 mm
Specifications L2
0.878 in | 22.3 mm
Specifications Model Code
SB
Specifications Motor Frame Size
37 mm | 1.457 in
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Motor with Gearbox 36G
Specifications Rated Output
1.3 W
Specifications Rated Speed
165 r/min
Specifications Rated Torque
8.33 oz·in | 0.060 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME34
Specifications Weight
200 g | 0.44 lb
