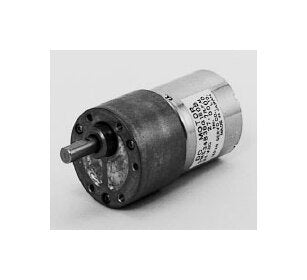

Enhance your equipment with the DME34 Series DC Motors with Gearbox 36G, featuring a compact design and power range from 0.7 W to 26 W. With a variety of gear heads available, these motors boast long-life performance, high output, and strength. The optimized brush design allows for over 1 million cycles of intermittent operation, making them suitable for institutional applications requiring durability and reliability. Choose from a large selection of gear heads and reduction ratios to meet diverse needs.
Product Specifications
Additional Information 0
DME34-With-Gearbox-36G.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
310 mA | 0.31 A
Specifications Gear Ratio
600
Specifications L1
2.551 in | 64.8 mm
Specifications L2
1.173 in | 29.8 mm
Specifications Model Code
BB
Specifications Motor Frame Size
37 mm | 1.457 in
Specifications Product Type
DC Motor with Gearbox 36G
Specifications Rated Output
4.5 W
Specifications Rated Speed
8.1 r/min
Specifications Rated Torque
55.55 oz·in | 0.39 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME34
Specifications Weight
230 g | 0.51 lb
