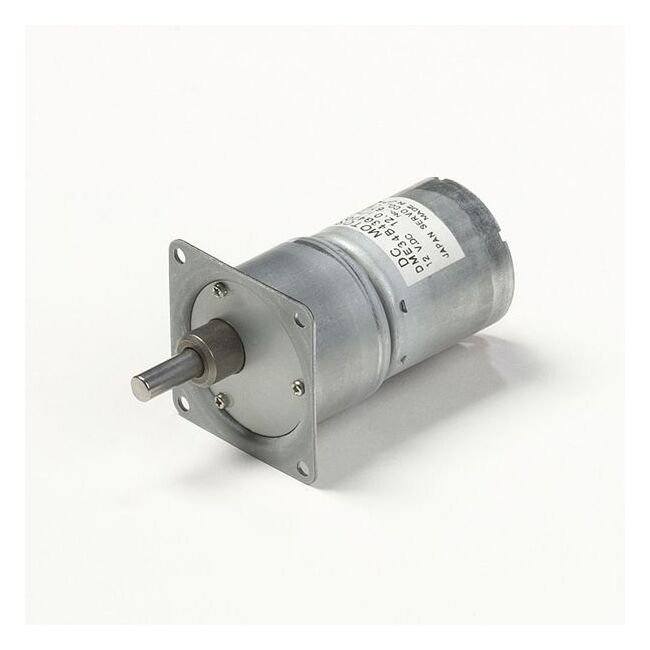

DME34 Series DC Motors with Gearbox 43G - High Power Precision Motors
DME34 Series DC Motors with Gearbox 43G - High Power Precision Motors
SKU:PER-cc7f76
High-power DME34 Series Motors with Gearbox 43G for precision performance in compact size. Optimal heat dissipation, low noise, and increased insulation for durability.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DME34 Series DC Motors with Gearbox 43G - High Power Precision Motors
$89.99
Quantity: 1
Claim Your Seller Account
DME34 Series DC Motors with Gearbox 43G - High Power Precision Motors
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME34 Series Motors with Gearbox 43G are designed for precision performance, offering a compact size with high power output ranging from 0.7 W to 26 W. With a variety of gear heads available (32 Dia-80 Sq and more), these motors feature optimized brush design for long-life operation exceeding 1 million cycles. Achieve high output with excellent heat dissipation and resistance, and benefit from high radial load capacity thanks to robust construction. Enjoy low noise operation and increased insulation with new resin brush holders. Choose from a large selection of gear heads and reduction ratios to meet diverse needs, including models with a magnetic revolution sensor and noise filter.
Product Specifications
Additional Information 0
DME34B43G.jpg | DME34-With-Gearbox-43G.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
650 mA | 0.65 A
Specifications Gear Ratio
30
Specifications L1
2.197 in | 55.8 mm
Specifications L2
0.819 in | 20.8 mm
Specifications Model Code
BA
Specifications Motor Frame Size
43 x 43 mm | 1.693 x 1.693 in
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Motor with Gearbox 43G
Specifications Rated Output
4.5 W
Specifications Rated Speed
123 r/min
Specifications Rated Torque
36.11 oz·in | 0.250 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME34
Specifications Weight
210 g | 0.46 lb
