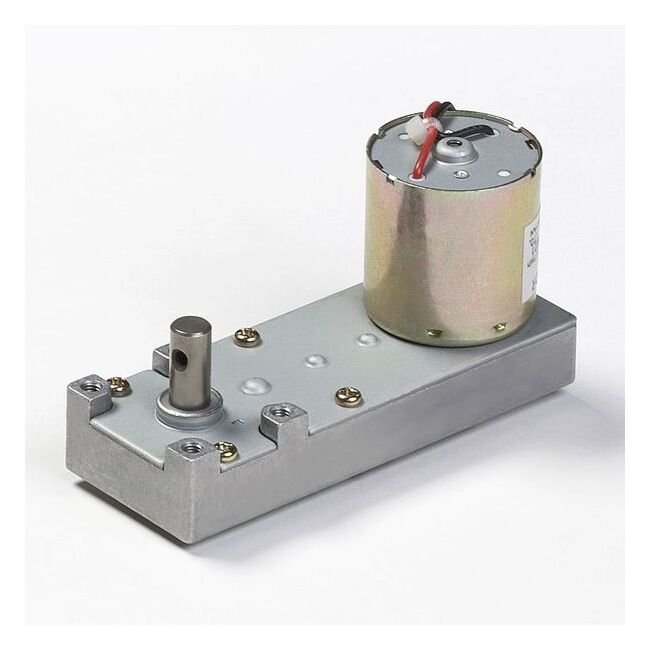

DME34 Series DC Motors with Gearbox L - High Power 1.3W, 24V
DME34 Series DC Motors with Gearbox L - High Power 1.3W, 24V
SKU:PER-5353b8
Compact high-power DC motors with Gearbox L, ideal for diverse applications. Long-life design, high efficiency, and versatile gear head options.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DME34 Series DC Motors with Gearbox L - High Power 1.3W, 24V
$89.99
Quantity: 1
Claim Your Seller Account
DME34 Series DC Motors with Gearbox L - High Power 1.3W, 24V
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME34 Series Motors with Gearbox L offer compact size and high power ranging from 0.7W to 26W, making them ideal for various applications. With a long-life design for over 1 million cycles, high radial load capacity, and low noise operation, these motors ensure reliability and efficiency. Equipped with a rated voltage of 24V and a rated torque of 65.27 oz·in, they provide consistent performance. The availability of a wide selection of gear heads, reduction ratios, and optional magnetic revolution sensors makes these motors versatile and adaptable to diverse industrial needs.
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
100 mA | 0.1 A
Specifications Gear Ratio
200
Specifications L
44.3 mm
Specifications Model Code
SB
Specifications Motor Frame Size
38 x 100 mm | .866 x 3.937 in
Specifications Product Type
DC Motor with Gearbox L
Specifications Rated Output
1.3 W
Specifications Rated Speed
16 r/min
Specifications Rated Torque
65.27 oz·in | 0.46 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME34
Specifications Weight
270 g | 0.6 lb
