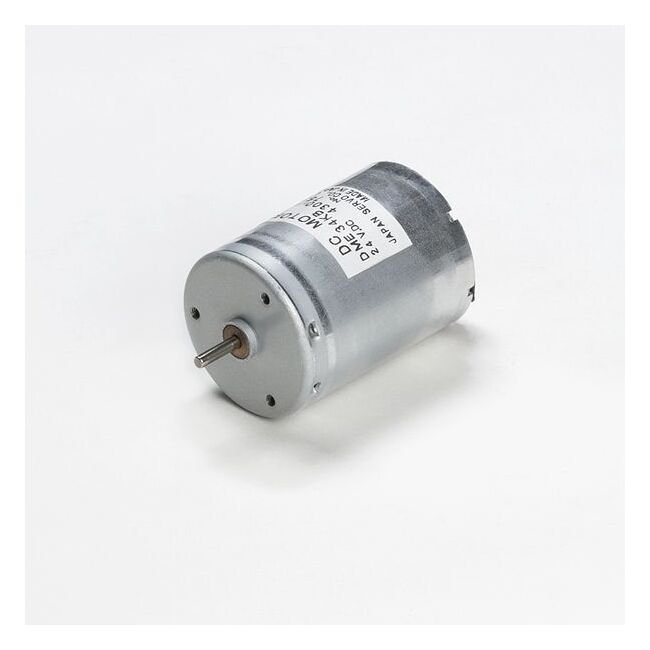

DME34 Series DC Motors with Pulse Generators

Name: DME34 Series DC Motors with Pulse Generators
Brand: Elinco International JPC, Inc.
SKU: PER-3296c0
Price: 99.99 USD
Availability: OutOfStock

SKU:PER-3296c0

Powerful and durable DME34 Series DC Motors with Pulse Generators for high-performance gear applications.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience superior performance with the DME34 Series Motors with Pulse Generators. These compact motors deliver high power ranging from 0.7 W to 26 W, offering a variety of models to suit different gear heads. Designed for longevity, these motors can endure over 1 million cycles with optimized brush design and provide continuous operation for up to 1000 hours. With high output capabilities, including heat dissipation and resistance, these motors offer increased radial load capacity and low noise levels. Choose from a wide selection of gear heads and reduction ratios to meet various institutional procurement needs. Additionally, options for magnetic revolution sensors and noise filters are available for enhanced functionality.

Product Specifications

Additional Information 0

Customize 0

Custom Designs

Dimensions 0


Specifications Current Rating

410 mA | 0.41 A

Specifications L

45 mm

Specifications Model Code

Specifications Motor Frame Size

34 mm | 1.339 in

Specifications No Load Current

0.06 A

Specifications No Load Speed

5100 r/min

Specifications Product Type

DC Motor

Specifications Rated Output

7 W

Specifications Rated Speed

4300 r/min

Specifications Rated Torque

14.7 mNÂ·m | 2.08 ozÂ·in

Specifications Rated Voltage

24 V

Specifications Series

DME34

Specifications Stall Torque

92 mNÂ·m | 13.03 ozÂ·in

Specifications Weight

140 g | 0.31 lb

Torque Curve 0


DME34 Series DC Motors with Pulse Generators
